| NT-8040RP

NUUO NT-8040RP rackmountable Titan NVR with up to 64 channels and 32TB storage, Linux-embedded and redundant power supply

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Options available:
Hurry! Only left

This product is now discontinued, for alternative products see Synology Network Video Recorders (NVRs)

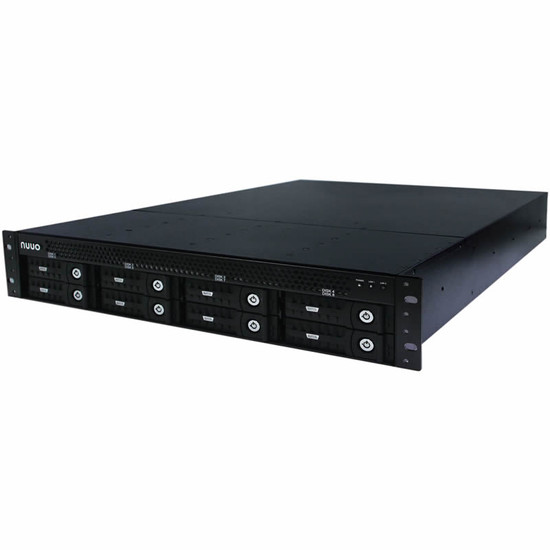

Overview of the NUUO NT-8040RP Titan NVR

Robust Linux-embedded NUUO Titan NVR network video recorder with 250Mbps throughput, up to 64 channel support and up to 32TB of HDD space. High megapixel camera support, redundant power supply, NUUO iViewer app and MAC compatibility.

The high throughput NT-8040RP Titan NVR comes with a 4 channel base license included with additional licenses available (available from the above drop down menu). This allows up to a maximum of 64 cameras to be connected, providing a scalable recording solution for medium and large CCTV applications. 8 HDD bays provide ample storage space up to 32TB (selectable from above drop down menu if required). The Linux-embedded operating system delivers stable and reliable operation, reducing risk of viruses and crashing. Cameras as high as 10 megapixel can be efficiently recorded at high frame rates due to the Fire Ring recording engine; this processes data at a throughput of up to 250Mpbs. Not only is the Titan NVR compatible with Windows and Mac, it also supports over 82 camera brands and nearly 2000 models.

Images can be 'stitched together' using Image Fusion Technology to create a better view of a scene, preventing dead angles and narrow hallway views. Optical and full digital pan-tilt-zoom control support in addition to auto-patrol and programmable preset views provides effective coverage of large environments. H.264, MPEG and MPEG-4 compression formats and panoramic 360° camera support (via full integration with Vivotek fish eye cameras and a generic dewarp driver) enables wide compatibility with a wide range of cameras.

The Titan NVR provides a centralised network video recorder accessible from anywhere, even on the move. The NUUO iViewer app enables remote access to live view and playback video via iPhone, iPad and Android mobile devices for flexible and convenient data management. Server configuration can be performed remotely, enabling the user to make changes even away from the server. Command chain technology synchronises user accounts and critical events across numerous servers, enabling central viewing of 400 channels at the same time. The Titan NVR is also Windows and Mac compatible.

The handy intelligent search feature quickly locates relevant footage though event/motion searches for efficient video management. Synchronised audio recording captures sound alongside activity and is a useful feature for helping with event analysis. Dual streaming capability prevents bandwidth bottlenecking by allowing a live view stream in high quality whilst recording in high quality. Users can connect a joystick to the Titan NVR for alternative camera control.

All NUUO NVRs are supported by the NUUO iViewer mobile app for iPhone, iPad and Android devices. Available from iTunes and Google play.

Supported cameras and video encoders: please visit the NUUO supported cameras page.

Please note: storage is sold separately to this unit, please select a HDD disk from the above drop down menu if required.

Key features & benefits

  • Robust Linux-embedded operating system prevents system crash and reduces risk of virus attacks
  • 4 channel base license can be upgraded up to 64 channels by adding extra licenses (available from the above drop down menu), providing cost-effective scalability
  • Fire Ring recording engine efficiently records high megapixel cameras by changing how the hard drive stores and retrieves video, allowing large amounts of data to be quickly processed
  • Rack mountable
  • Redundant power supply ensures ongoing operation through all times so surveillance footage is uninterrupted
  • 4 RAID levels: 0,1,5 and 10 are supported for maximum capacity or data protection
  • Command chain technology provides centralised viewing by synchronising user accounts and critical events across numerous servers
  • Dual gigaports separates the recording stream from the viewing stream for a clean recording pipeline
  • H.264, MPEG-4 and MPEG formats provide compression compatibility with a vast range of IP cameras
  • Centralised multi-layer e-map enables camera drag and drop and I/O from different servers onto the same map with colour changing indicator icons when an event occurs
  • Centralised I/O supports 3 system events and 4 external events for effective surveillance
  • NuClient alerts users instantly of an event through email and outputs such as a siren
  • Support for 100 playback channels and 400 live channels is an ideal feature for large CCTV applications
  • Image fusion technology produces the optimum viewing angle by 'stitching together' up to 10 images to form a consecutive single view, preventing narrow views and dead angles
  • The web and software client, identical n functions and control, enable Titan NVR access without installing the client software
  • NUUO iViewer app enables handy remote access to playback and live video via mobile devices such as Android, iPad and iPhone
  • Remote server configuration enables server configuration when not physically near it
  • Recording in external storage (DAS, iSCSI)
  • NTP (Network Time Protocol) support synchronises time and date of the Titan NVR with an NTP server so all devices have the same date and time
  • Camera dual (2nd) stream allows high resolution recording simultaneously to remote viewing in low resolution (typically) to prevent bandwidth bottlenecking
  • Automatic backup through FTP to remote or local storage ensures secure video data
  • Alternative recording modes: continuous, scheduled, event based and I/O based enable the user to select a suitable recording mode
  • Synchronised audio and video recording delivers enhanced quality video data and is useful for event analysis
  • Full SDK support
  • Camera licenses are able to be transferred to alternative Titan NVRs if required, for flexible license management
  • Windows and Mac browser compatible viewing
  • Support for Panoramic 360° PTZ cameras (ImmerVision and VIVOTEK fisheye)
  • Optical and digital PTZ and preset point patrolling provides effective coverage of a scene
  • Popup event playback instantly displays with a double click for quick viewing
  • Private views set out by operators can only be viewed by creators whilst all users can see public views
  • The Titan NVR can move automatically through alternative screen layouts through the view tour to loop through selected views feature
  • Choice of AVI, ASF or MOV format provides flexibility of file format for different requirements
  • Intelligent search quickly identifies motion/event data for efficient playback management
  • Joysticks support provides a different method of camera control to a mouse

Typical applications

The NUUO NT-8040RP Titan NVR network video recorder is suitable for large IP CCTV systems which have PTZ, 360° panoramic and/or megapixel cameras and high quality recording is required. The rackmountable Titan NVR is ideal for applications such as factories, large retail stores, hospitals, government buildings and petrol stations which may need to up scale at a later date.



  • Redundant power supply

Optional (available from the above drop down menu):

  • Storage
  • Additional licenses
Back To Top

Key technical features for NT-8040RP NUUO Titan NVR

Supported devices82 brands and over 1866 models
Maximum no. of cameras:4 plus (up to 60 additional licenses)
HDD:8 bay, support RAID 0,1,5 and 10 for maximum capacity or data protection
External storage:DAS, iSCSI
Audio:one-way, synchronized audio and video recording
CPU and OS:Intel® Core™ i5-2400 processor (6M Cache, up to 3.40 GHz), embedded-Linux
Maximum throughput:250Mbps
Power:100-240V, 400W (redundant power)
Resolution:all resolutions supported, refer to NUUO supported camera page
Compression:H.264. MPEG4, M-JPEG, H.264
Frame-rate:all frame rates supported, camera dependent, refer to NUUO supported camera page
Viewing, detection & recording
Camera control:digital PTZ, optical PTZ, joystick support
Playback control:instant popup playback via double click, intelligent event/motion search
Intelligent search:motion start, motion stop, unit connection lost, manual record mode start, and manual record mode stop
Recording mode:continuous, scheduled, even based and I/O
Alarm detection:video motion detection, 6 x I/O ports (USB) for external detection devices
Alarm notifications:notify users of alerts through sound, digital output devices (e.g. speakers, flashing light etc), push notification, e-mail and NUUO CMS alert
Backup:auto backup: automatically backup the recorded video of previous dates to a designated FTP server, manual backup
Remote client:NuClient (Software), NuClient (Web), iViewer (Mobile App), Windows XP (32 bit), Win 7 (32 and 64bit), Win 8 (32 and 64bit), Mac OS X 10.6, 10.7 and 10.8
Mobile support:iPhone, iPad, Android
Power:100-240V, 400W

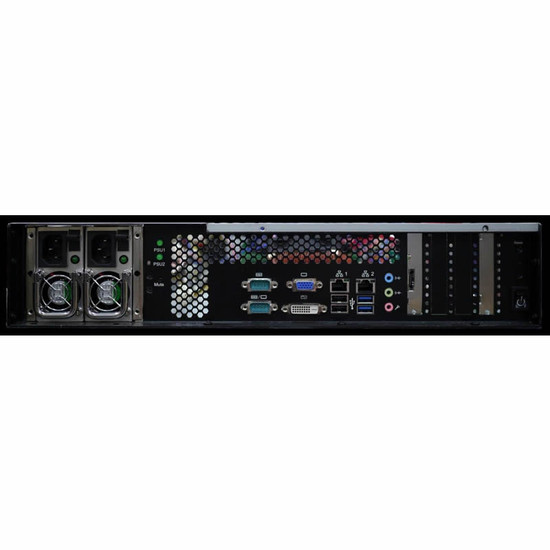

Network:2 x Gigabit port, RJ-45
HDD:8x SATA II, 1 x eSATA (for DAS)
I/O interface:2 x USB 3.0, 2 x USB 2.0
Monitor output (s):VGA (spot monitor for one camera only)
Dimensions:85 x 440 x 590mm
Weight:10.6 kg (w/o HDD)
Power consumption:400W (redundant power)
Warranty:2 years
Operating temperatures:operating: 0° C ~ 40°C (32°F ~ 104°F)
Languages:Chinese (simplified and traditional), Croation, Czeck, Dutch, English, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Thai, Turkish
