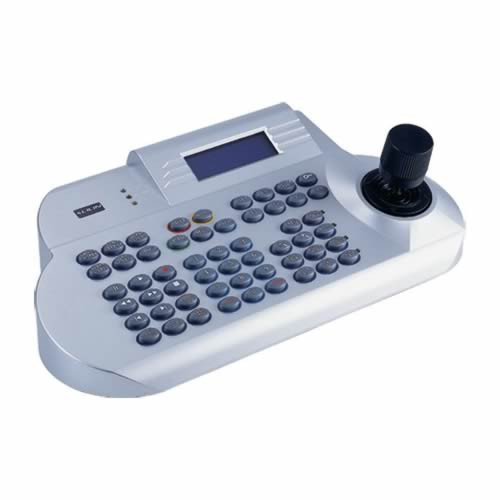

LILIN PIH-931D keyboard controller with twist zoom and LCD display for dome cameras, NVRs, CMX software and matrices

This product is discontinued,for alternative models please see Control boards and Joysticks

Overview of the LILIN PIH-931D

The LILIN PIH-931D is a multi-use keyboard controller, which enables the user to control LILIN’s NVRs, PTZ cameras, the LILIN CMX recording software and matrices. It provides a simple operator interface and allows operation of all the features of the equipment. The PIH-931D enables control of movement speed when using the PTZ feature. This product is suitable for use with LILIN NVRs and PTZ cameras.

Key features & benefits

• Compatible with LILIN NVRs, PTZ cameras, CMX recording software, matrix
• 3-axis joystick enables easy use of pan, tilt and zoom features with movement speed control
• Up to 8 keyboards can be added to a system if there is a matrix present
• Movement speed control: pan – 8 steps, tilt – 8 steps, zoom – 16 steps
• Data communication: RS-485 standard (format N, baud rate 9600bps)
• Control mode: PTZ / matrix / DVR
• LCD display: 20 characters x 4 lines
• Keyboard keypad: 54 keys
• Power consumption: 3W
• Dimensions: 340mm (W) x 194mm (D) x 103mm (H)
• Weight: 1.3kg (net)

Accessories

Included:

• Connector box
• RJ-45 connection cable
• Power adaptor DC 12V±10% / 250mA
• User manual
