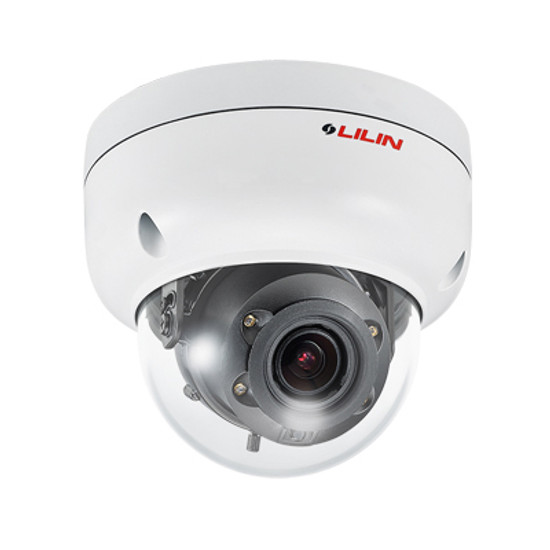

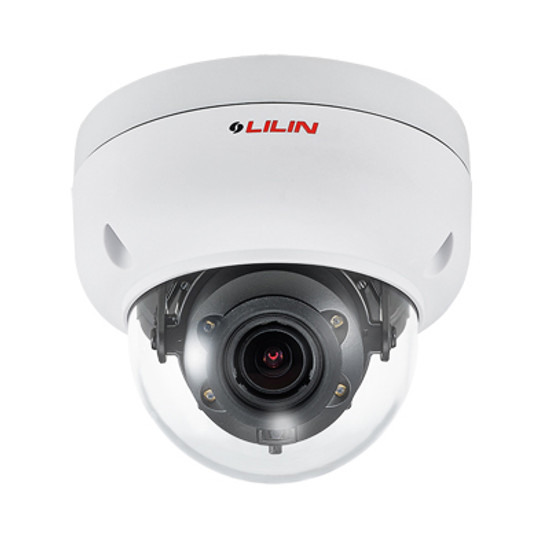

LILIN MR2922AX indoor mini-dome IP camera with full HD 1080p, SenseUp Plus, up to 30m IR, edge storage and PoE

This product is discontinued, an alternative model is the Wisenet XNV-6020R

Overview of the LILIN MR2922AX

The LILIN MR2922AX indoor mini-dome IP camera delivers full HD 1080p resolution at up to 30 frames per second (fps), with true day/night recording and up to 30m of infrared (IR) night vision. This unit also features SenseUp Plus technology, Intelligent Video Surveillance (IVS), edge storage and Power-over-Ethernet (PoE) support.

LILIN’s SenseUP Plus technology allows the camera to capture full colour images even in dimly lit environments and if light levels continue to fall, the unit activates IR night vision with a maximum illumination distance of 30m. Intelligent Video Surveillance technology provides a number of on-board video analytics that improve perimeter security, such as Advanced Motion Detection and Tripwire Detection. These alarms can also be set to trigger recording to the on-board MicroSD card (not included) – ensuring all motion is captured. In addition, PoE supplies power and network connection to the camera through one cable - simplifying installation.

Please note: this camera does not come with a power supply, please select from the above dropdown menu if required.

Key features & benefits

• Capable of delivering HD 1080p resolution at 30 fps for detailed IP CCTV surveillance
• Varifocal 2.8 - 12mm lens provides a horizontal viewing angle of up to 102°, for optimum scene coverage
• True day/night capability enables 24-hour monitoring of indoor locations
• Integrated infrared LED provides up to 30m of night vision
• LILIN’s SenseUp Plus technology supports the capture of full colour images in light levels as low as 0.08 lux
• WDR and 3D noise reduction imaging technologies improve image clarity in difficult lighting conditions
• Intelligent Video Surveillance provides Advanced video analytics including Motion Detection, Tripwire Detection and Object Counting
• Audio I/O ports support two-way communication and allow sound to be recorded
• Integrated MicroSD card storage (card not included) provides a handy backup of data if connection to the network is lost
• Support for PoE reduces cabling by delivering both power and network connectivity via a single cable
• Free LILINViewer mobile application offers remote access to live video and playback of recordings
• Dimensions: Ø120mm x 115mm
• PoE consumption: 7.2W
• Warranty period: 3 years

Compatible Recording Platforms

• LILIN Network Video Recorders (NVRs)
• Milestone XProtect

Typical applications

The LILIN MR2922AX mini-dome IP camera utilises low-light technology and built-in IR illuminators to deliver round-the-clock surveillance of indoor areas. Typically deployed in small offices, GP practices and cafes.

Accessories

Included:

• Installation manual
• Installation CD

Optional (please select from the above dropdown menu if required):

• PoE midspan
• MicroSD card
