| IPC0122W

LILIN IPC0122W indoor wireless modular IP camera with HD 1080p, wide dynamic range, 3D noise reduction, 2-way audio and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • Pinhole lens: 100° viewing angle
  • HD 1080p resolution
Hurry! Only left

This product is discontinued, an alternative model is the Wisenet XND-6080R

Overview of the LILIN IPC0122W

The LILIN IPC0122W is a wireless modular IP camera that produces full HD 1080p resolution at up to 30 frames per second (fps). Featuring wide dynamic range (WDR) which enables details in scenes with both bright and dark areas to be viewed clearly, and 3D noise reduction technology to improve video quality in low light. Power-over-Ethernet (PoE) is also supported, reducing cabling to help simplify installation.

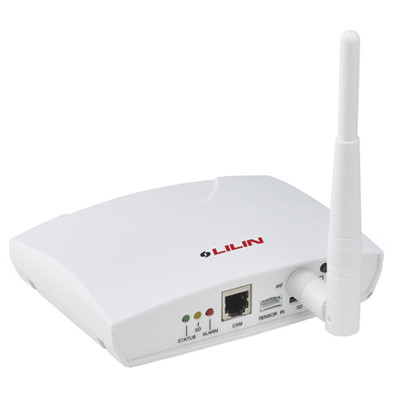

This camera comprises of a main unit which supports Wi-Fi connection to the network and a sensor module with a pinhole lens that provides a 100° angle of view. The main unit and lens are connected by 6 metres of cable, allowing for unobtrusive and flexible installation. Additionally, camera-based video motion detection alarms are configurable and help to alert users of any activity via a choice of notification methods including email and triggering recording to the on-board MicroSD card (not included.)

Please note: this camera does not come with a power supply, please select from the accessories tab if required.

Key features & benefits

  • Equipped with a full HD sensor, delivering 1080p resolution at up to 30 fps
  • Compact pinhole lens with 100° viewing angle for wide scene capture
  • Easy network connection over wireless LAN allows the camera to be used in areas without existing network cabling
  • Wide Dynamic Range (WDR) retains the level of detail across images with high contrast lighting
  • 3D noise reduction improves video quality in low lighting
  • Digital PTZ controls allow the operator to quickly view specific areas of the image in greater detail
  • Video motion detection methods can be configured to alert users of possible incidents in real-time
  • Two-way audio supported via the connection of an external microphone and speaker (not included) for audio capture
  • Digital I/O provides support for connection of external devices such as PIR sensor
  • On-board recording to a MicroSD card (not included) provides cost-effective storage independent of the network
  • Support for PoE supplies power and network connection to the camera through one cable - simplifying installation
  • Mobile viewing via LILINViewer app for iOS and Android devices
  • Dimensions: main module: 130mm x 35mm x 93mm, sensor module: &0slash;25 x 32mm
  • PoE consumption: 8W
  • Warranty period: 3 years

Compatible recording platforms

Typical applications

With its unique form factor and compact design, the LILIN IPC0122W modular wireless IP camera provides HD 1080p images in locations where either concealment is required or space for mounting is limited. Typical applications include ATM machines, door-entry systems and betting shops.



  • Main unit
  • Sensor unit
  • 6m cable
  • Instruction manual
  • Installation CD

Optional (please select from the accessories tab if required):

  • PoE midspan
  • MicroSD card
