Overview of the Honeywell HC35WP5B main unit for Honeywell 35 Series sensors
- Compact main unit supports one compatible Honeywell 35 Series sensor
- Captures video in 5MP at 30 fps, 2MP at 30 fps, or 1MP at up to 180 fps
- WDR enhances image clarity in difficult lighting
- AI-based analytics deliver accurate object detection
- Audio input/output enables microphone connection for audio-based alerts
This compact 1-channel main unit is designed for use with a single Honeywell 35 Series sensor, offering a cost-effective solution for versatile monitoring in tight or limited indoor spaces. It supports high-quality video capture at up to 5MP resolution at 30 fps, with options for 2MP at 30 fps or 1MP at an ultra-smooth 180 fps. With WDR for improved clarity in challenging lighting and AI-driven analytics for accurate object detection, it ensures reliable performance. Built-in audio I/O also allows for microphone support, enabling audio-based event detection. The main unit and each sensor comes supplied with a mounting bracket for convenient and secure installation.
Video Analytics
AI-powered Smart Video Analytics improve monitoring by offering features such as motion detection, intrusion alerts, people counting, line crossing detection, and tampering notifications. Events can trigger alerts via email or VMS, and connect with local alarms through two I/O ports. Smart Motion Detection helps reduce false alarms by distinguishing between people and vehicles. Privacy masking is also available.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Honeywell Smart Viewer VMS
- Honeywell NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- ATMs and cash-handling areas such as bank tellers and cashier desks
- Door-entry systems
- Ingress and egress points
- Fire escapes
- Vending machines
Accessories Included
- HC35WP5B Main Unit
- Mounting bracket
- Mounting screws
- Installation guide
Key technical features of the Honeywell HC35WP5B main base unit for Honeywell 35 Series sensors
Camera |
|
| Environment: | indoor |
| Type: | main unit |
| Sensor: | 1/1.7” 12MP STARVIS™ CMOS |

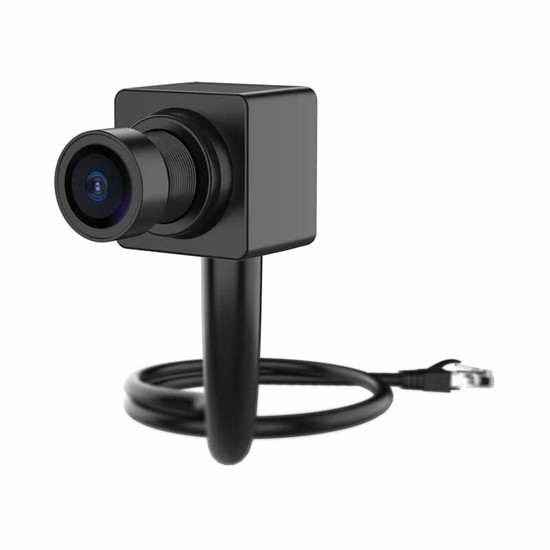

| Lens: | HA35P2L28: Lens, 2.8 mm, Fixed Iris, F2.0

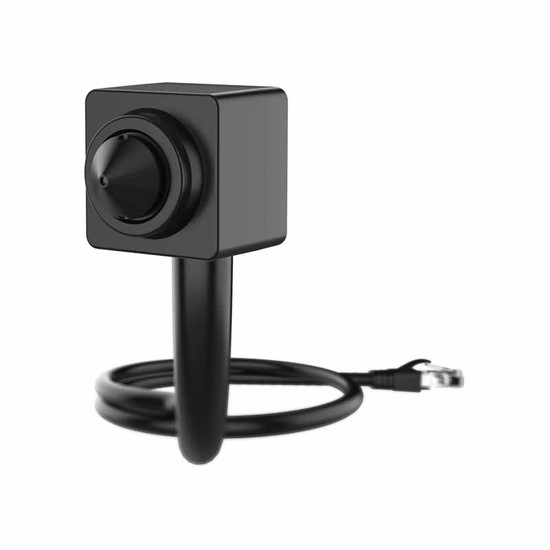

HA35P5L37: Lens 3.7mm, Fixed Iris, F2.4 HA35P5F12: Fisheye Lens 1.22 mm , Fixed Iris, F2.0 |
| Field of view: | HA35P2L28:
2M Mode LDC off: H:94.3°, V:53.2° 2M Mode LDC on (50%): H:87.5°, V:52.9° 2M Mode LDC on (100%): H:79.6°, V:52.7° 1M Mode LDC off: H:44.7°, V:24.9° 1M Mode LDC on (50%): H:41.6°, V:24.7° 1M Mode LDC on (100%): H:38°, V:24.7° HA35P5L37: 5M Mode LDC off: H:75.3°, V:52.5° 5M Mode LDC on (50%): H:71.3°, V:52.3° 5M Mode LDC on (100%): H:65.9°, V:51.4° 4M Mode LDC off: H:73.9°, V:37.8° 4M Mode LDC on (50%): H:67.4°, V:37.5° 4M Mode LDC on (100%): H:61.6°, V:37.4° HA35P5F12: 5M Mode Fisheye Correction Off: 193.9° 5M Mode Fisheye Correction On: H:167.6°, V:129.0° 2M Mode Fisheye Correction Off : 193.9° 2M Mode Fisheye Correction On: H:167.6°, V:97.5° |
| Audio: | 1 Ch Input, 1 Ch Output |
| Power supply: | DC12 V, 1A; (-15% to +25%)/PoE (IEEE 802.3af)
PoE 44~57V, 350mA |
| Power consumption: | Max 5 W |
Imaging |
|
| Max Resolution: | HA35P2L28: 1920x1080 (2 MP)
HA35P5L37: 2592×1944 (5 MP) HA35P5F12: 2592×1944 (5 MP) |
| Frame rate: | up to 180 fps |
| Video streaming: | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Day/Night: | Auto/Day/Night/Time |
| Minimum illumination: | HA35P2L28:
0.008 Lux @ (F2.0, 30 IRE) HA35P5L37: 0.009 Lux @ (F2.4, 30 IRE) HA35P5F12: 0.008 Lux @ (F2.0,30 IRE) |
| Backlight Compensation: | WDR, BLC, HLC |
Analytics |
|
| Video Analytics: | HA35P2L28: 720P 150/180fps mode supports Motion Detection only
Other modes: Motion Detection, Smart Motion, Scene Change, Intrusion, Multi Loitering, People Counter, Face Detection, Line Crossing Detection HA35P5L37: Motion Detection, Smart Motion, Scene Change, Intrusion, Multi Loitering, People Counter, Face Detection, Line Crossing Detection HA35P5F12: Motion Detection, Smart Motion, Scene Change, Intrusion, Multi Loitering, People Counter, Face Detection, Line Crossing Detection |
| Event Type: | Video Motion Detection, Alarm Input, Recording Notification, Tampering, Audio Detection |
| Event Linkage: | Event notification, Email and Micro SD card |
| Region of Interest: | 8 |
Video Management |
|
| On-camera recording: | Support for microSD card (up to 1TB) |
| Network video recorders: | Honeywell NVRs, Milestone Husky |
| Video Management Software: | Honeywell DVM, Milestone XProtect |
| Cloud: | MAXPRO NVR, Milestone Arcules |
General |
|
| Dimensions: | Main body With Bracket: 86.0 x 75.1 x 33.5 mm (3.39” x 2.96” x 1.32”) HA35P2L28: Camera lens: 34.7 x 22 x 22 mm (1.37“ x 0.87” x 0.87“) Lens cable length: 2000±35 mm (78.74”±1.38”) HA35P5L37: Camera lens: 27.5 x 22 x 22 mm (1.08“ x 0.87” x 0.87“) Lens cable length: 2000±35 mm (78.74”±1.38”) Main body With Bracket: 86.0 x 75.1 x 33.5 mm (3.39” x 2.96” x 1.32”) HA35P5F12: Camera lens: 36.6 x 22 x 22 mm (1.44“ x 0.87” x 0.87“) Lens cable length: 2000±35 mm (78.74”±1.38”) Main body With Bracket: 86.0 x 75.1 x 33.5 mm (3.39” x 2.96” x 1.32”) |
| Weight: | HC35WP5B: 0.131 kg (0.289 lb)
HA35P2L28: 0.131 kg (0.289 lb) HA35P5L37: 0.127 kg (0.28 lb) HA35P5F12: 0.135 kg (0.298 lb) |
| Casing: | Body Material: Metal + Plastic
Colour: Black |
| Operating temperatures: | -30 °C ~ 55 °C (-22 °F ~ 131 °F ) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, DDNS |
| Security: | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2&TLS1.3, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance, Built-In encryption chipset |
