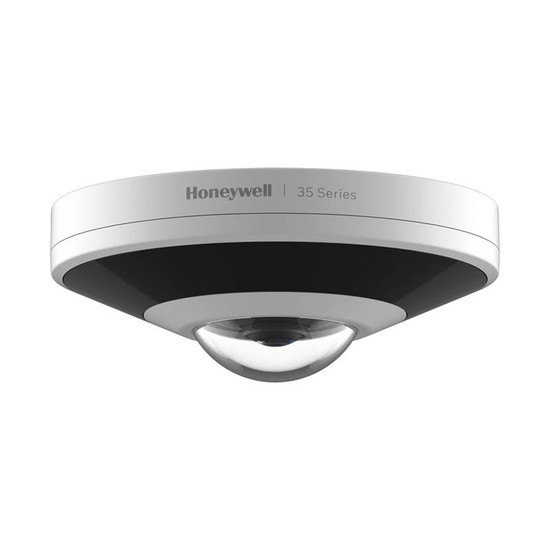

Overview of the Honeywell HC35WFCR1 fisheye 12MP IP camera
- Delivers clear 12MP resolution 180° panoramic or 360° hemispheric overviews
- Eliminate blindspots with dewarping and digital PTZ support for detailed scene investigation
- Integrated 360° Smart IR illumination up to 20m range in complete darkness
- AI-driven video analytics for accurate detection of persons and vehicles
- IP66/67 and IK10 rated for protection against harsh weather and vandalism
Offering full 360° coverage in sharp 12MP resolution, this compact and budget-friendly fisheye camera is ideal for both indoor and outdoor use. It includes digital PTZ and dewarping, allowing you to focus on up to four specific areas, along with options for single or dual panoramic viewing. Smart IR LEDs enable 360° visibility in total darkness up to 20 metres, while digital WDR ensures clear images in challenging lighting conditions. A built-in microphone captures on-site audio to support more comprehensive monitoring.
We recommended mounting this camera with the Honeywell HA35JCBHA1 35 Series All-In-One Junction Box for effective cable management and neat installation.
Video Analytics
AI-powered Smart Video Analytics improve monitoring by offering features such as motion detection, intrusion alerts, people counting, line crossing detection, and tampering notifications. Events can trigger alerts via email or VMS, and connect with local alarms through two I/O ports. Smart Motion Detection helps reduce false alarms by distinguishing between people and vehicles. Privacy masking is also available.
Please note: Video analytics are only supported under single channel fisheye mode.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Honeywell Smart Viewer VMS
- Honeywell NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Retail stores - Manage customer flow, count visitors, loitering detection to identify hot-spot areas, claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats such as break ins, staff training, identify busiest periods to optimise staffing
- Corporate / offices - Overviews of large rooms, detect individuals, procedure compliance
- Warehouses & Logistics - Procedure compliance, track and trace, claim handling, maintain employee safety, detect cries for help in the event of accidents
- Schools & Education - oversee campuses, lecture halls and large corridors
Accessories Included
- HC35WFCR1 camera
- Mounting screws
- Drill template
- Installation guide
- T15 torx screwdriver
- RJ45 connector
- Power fly lead
Key technical features of the Honeywell HC35WFCR1 in/outdoor fisheye 12MP IP camera
Camera |
|
| Environment: | indoor/outdoor |
| Type: | fixed fisheye |
| Sensor: | 1/1.7” 12MP STARVIS™ CMOS |
| Lens: | 1.22 mm, Fixed Iris, F2.0
H:180° V:180° |
| IR Light Number: | 6 |
| IR Distance: | 360°, up to 20m |
| IR Light Control: | Smart IR (Auto/Manual)/OFF |
| Audio: | 1 Ch Input, 1 Ch Output, Built-in Mic |
| Power supply: | DC12V, 1A; (-15% to +25%) / PoE 44-57 V, 350mA |
| Power consumption: | Max 10.6 W |
Imaging |
|
| Max Resolution: | 4000 x 3000, 3000 x 3000, 2560 x 2560, 1280 x 960 @25fps |
| Frame rate: | up to 25 fps |
| Video streaming: | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Day/Night: | Auto/Day/Night/Time |
| Minimum illumination: | Colour: 0.01 Lux @ (F2.4, 30 IRE)
B/W: 0 Lux @ (IR LED ON) |
| Backlight Compensation: | BLC, HLC |
| WDR: | Digital WDR only |
Analytics |
|
| Video Analytics: | Video analysis is supported under Single channel fisheye mode only:
Motion Detection, Smart Motion, Scene Change, Intrusion, Multi-Loitering, People Counter, Face Detection, Line Crossing Detection, Unattended Object Detection, Missing Object Detection, Heat Map |
| Event Type: | Video Motion Detection, Alarm Input, Recording Notification, Tampering, Audio Detection |
| Event Linkage: | Event notification, Email and Micro SD card |
| Region of Interest: | 8 |
Video Management |
|
| On-camera recording: | Support for microSD card (up to 1TB) |
| Network video recorders: | Honeywell NVRs, Milestone Husky |
| Video Management Software: | Honeywell DVM, Milestone XProtect |
| Cloud: | MAXPRO NVR, Milestone Arcules |
General |
|
| Dimensions: | Ø130 x 51.5 mm (5.12” x 2.03”) |
| Weight: | 0.602 kg (1.327 lb) |
| Casing: | IP66/67 ingress protection
IK10 (housing only) Metal & plastic Colour: Camera Body: RAL 9003 (Signal White) Front/Lens Facings: Black |
| Operating temperatures: | -30 °C ~ 60 °C (-22 °F ~ 140 °F ) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, DDNS |
| Security: | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2&TLS1.3, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance, Built-In encryption chipset |
