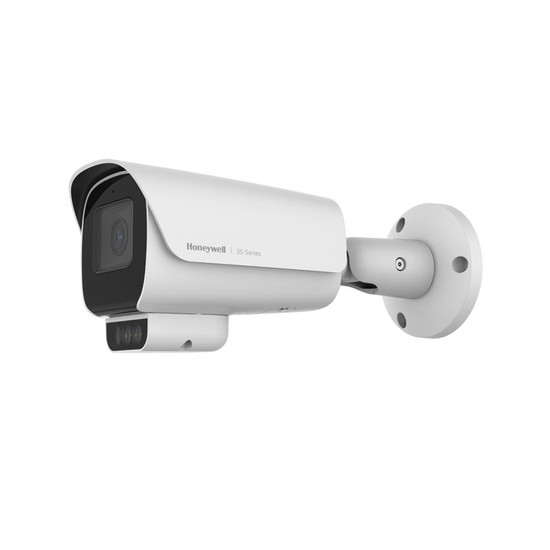

Overview of the Honeywell HC35CB5R3 in/outdoor dual light bullet camera
- Reliable and affordable bullet IP camera suitable for indoor and outdoor surveillance
- 5MP resolution with 2.8mm fixed lens for 93.1° horizontal viewing field
- Dual white and Smart IR LEDs captures full-colour video in very low light
- AI-driven video analytics for accurate detection of persons and vehicles
- 2-way audio communication with the built-in microphone and speaker
This affordable 5MP bullet IP camera captures full-colour video both day and night, even in low or challenging lighting. It features a 2.8mm lens with a 93.1° horizontal field of view, and its aluminium housing is IP66/67 and IK10 rated for reliable outdoor use. WDR technology improves clarity in high-contrast scenes by balancing shadows and highlights. Integrated Smart IR LEDs offer up to 40m night vision, while warm white LEDs provide 30m of illumination, enhancing video clarity and supporting more accurate AI-based analytics. A built-in microphone and speaker enable two-way audio for improved functionality.
We recommended mounting the camera to walls and ceilings with the Honeywell HA35JCBHBA Bullet Junction Box for effective cable management and neat installation.
Video Analytics
AI-driven video analytics enhance monitoring with features like video motion detection, intrusion, people counting, line crossing and tampering alerts. Events can trigger notifications via email or VMS, and integrate with local alarms through 2 x I/O ports. Smart Motion Detection distinguishes between humans and vehicles to reduce false alarms. Privacy masking is also supported.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Honeywell Smart Viewer VMS
- Honeywell NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Perimeter and zone protection - Early detection of humans or vehicles, configure alarms upon unexpected behaviour
- Entrance monitoring - Visitor detection, prevent unauthorised access, monitor loitering, minimise vandalism, authorise and confirm deliveries
- Anti-vandalism - deter criminal activity, identify suspicious behaviour, early warning of break-ins, document details of perpetrators
- Warehouses & Logistics - Procedure compliance, track and trace, claim handling, maintain employee safety, detect cries for help in the event of accidents, audio confirmation on delivery of instructions
Accessories Included
- HC35CB5R3 camera
- Mounting screws
- Drill template
- Installation guide
- Torx key
- RJ45 connector
- Power fly lead
Key technical features of the Honeywell HC35CB5R3 in/outdoor dual light bullet camera
Camera |
|
| Environment: | indoor/outdoor |
| Type: | fixed bullet |
| Sensor: | 1/2.8” CMOS |
| Lens: | 2.8 mm, Fixed Iris, F1.0
H:93.1° V:69.4° |
| IR Light Number: | 8(5 IR + 3 Warm light) |
| IR Distance: | IR up to 40m, Warm light up to 30m |
| IR Light Control: | Smart IR (Auto/Manual)/OFF |
| Audio: | 2-Way, Full duplex, built-in microphone with speaker |
| Power supply: | DC12V, 1A; (-15% to +25%) / PoE 44-57 V, 350mA |
| Power consumption: | Max 11.5 W |
Imaging |
|
| Resolution: | 2592 x 1944/2592 x 1520/1920 x 1080/1280 x 720 @25fps |
| Frame rate: | up to 30 fps |
| Video streaming: | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Day/Night: | Auto/Day/Night/Time |
| Minimum illumination: | Colour: 0.003 Lux (F1.0, 30 IRE)
B/W: 0 Lux with Light on |
| Backlight Compensation: | BLC, HLC, WDR (120 dB) |
Analytics |
|
| Video Analytics: | Motion Detection, Smart Motion, Scene Change, Intrusion, Multi-Loitering, People Counter, Face Detection, Line Crossing Detection |
| Event Type: | Video Motion Detection, Alarm Input, Recording Notification, Tampering |
| Event Linkage: | Event notification, Email and Micro SD card |
| Region of Interest: | 8 |
Video Management |
|
| On-camera recording: | Support for microSD card (up to 1TB) |
| Network video recorders: | Honeywell NVRs, Milestone Husky |
| Video Management Software: | Honeywell DVM, Milestone XProtect |
| Cloud: | MAXPRO NVR, Milestone Arcules |
General |
|
| Alarm I/O connections: | 1 In / 1 Out |
| Dimensions: | Adjustable 229.2~239.2 × 88.8 × 97.2 mm (9.02” ~ 9.42” × 3.50“ × 3.83”) |
| Weight: | 1.151 kg (2.538 lb) |
| Casing: | IP66/67 ingress protection
IK10 (housing only) Die-cast aluminium housing Colour: Camera Body: RAL 9003 (Signal White) Front/Lens Facings: Pantone Black |
| Operating temperatures: | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, DDNS |
| Security: | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2&TLS1.3, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance, Built-In encryption chipset |
