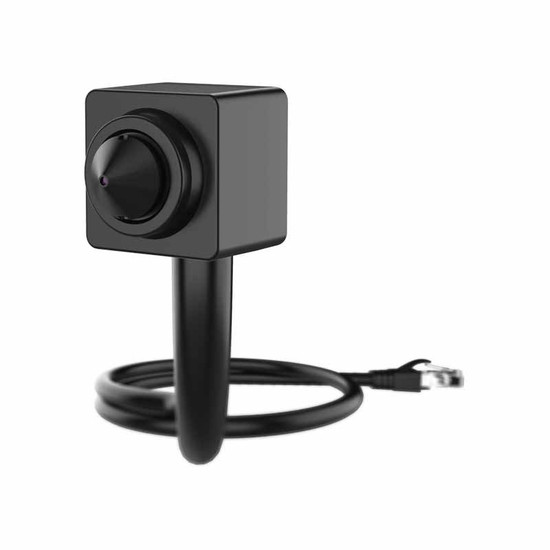

Overview of the Honeywell HA35P5L37 5MP pinhole sensor unit
- Compact modular pinhole sensor for use with the Honeywell HC35WP5B main base unit
- Captures video in 5MP resolution at up to 25 fps
- Lens distortion correction reduces visual warping for improved clarity
- WDR balances scenes suffering from high levels of contrast and shadows
- Supports AI-based analytics for reliable object detection
This compact modular lens sensor is designed for use with the Honeywell HC35WP5B main base unit, offering an affordable solution for versatile monitoring in tight or limited indoor spaces. It supports high-quality video capture at up to 5MP resolution at up to 25 fps. The sensor can be placed up to 2 metres away from the base unit with the supplied cable. With WDR for improved clarity in challenging lighting and AI-driven analytics for accurate object detection, it ensures reliable performance. This sensor comes supplied with two different mounting brackets for versatile installation options.
Please note: this sensor unit is designed for use with the Honeywell HC35WP5B main base unit and is not a standalone network camera.
Video Analytics
AI-powered Smart Video Analytics improve monitoring by offering features such as motion detection, intrusion alerts, people counting, line crossing detection, and tampering notifications. Events can trigger alerts via email or VMS, and connect with local alarms through two I/O ports. Smart Motion Detection helps reduce false alarms by distinguishing between people and vehicles. Privacy masking is also available.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Honeywell Smart Viewer VMS
- Honeywell NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- ATMs and cash-handling areas such as bank tellers and cashier desks
- Door-entry systems
- Ingress and egress points
- Fire escapes
- Vending machines
Accessories Included
- HA35P5L37 sensor unit
- Flat surface mount
- Hinged mount
- Mounting screws
- Installation guide
Key technical features of the Honeywell HA35P5L37 5MP pinhole sensor unit
Camera |
|
| Environment: | indoor |
| Type: | modular sensor |
| Sensor: | 1/2.8" CMOS |
| Lens: | Lens 3.7mm, Fixed Iris, F2.4 |
| Field of view: | HA35P5L37:
5M Mode LDC off: H:75.3°, V:52.5° 5M Mode LDC on (50%): H:71.3°, V:52.3° 5M Mode LDC on (100%): H:65.9°, V:51.4° 4M Mode LDC off: H:73.9°, V:37.8° 4M Mode LDC on (50%): H:67.4°, V:37.5° 4M Mode LDC on (100%): H:61.6°, V:37.4° |
| Audio: | 1 Ch Input, 1 Ch Output |
| Power supply: | Via base unit: DC12 V, 1A; (-15% to +25%)/PoE (IEEE 802.3af)
PoE 44~57V, 350mA |
| Power consumption: | Max 5 W |
Imaging |
|
| Max Resolution: | 2592×1944 (5 MP) |
| Frame rate: | up to 180 fps |
| Video streaming: | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Day/Night: | Auto/Day/Night/Time |
| Minimum illumination: | HA35P5L37:
0.009 Lux @ (F2.4, 30 IRE) |
| Backlight Compensation: | WDR, BLC, HLC |
| WDR: | 120 db |
Analytics |
|
| Video Analytics: | HA35P5L37:
Motion Detection, Smart Motion, Scene Change, Intrusion, Multi Loitering, People Counter, Face Detection, Line Crossing Detection |
| Event Type: | Video Motion Detection, Alarm Input, Recording Notification, Tampering, Audio Detection |
| Event Linkage: | Event notification, Email and Micro SD card |
| Region of Interest: | 8 |
Video Management |
|
| On-camera recording: | Support for microSD card (up to 1TB) |
| Network video recorders: | Honeywell NVRs, Milestone Husky |
| Video Management Software: | Honeywell DVM, Milestone XProtect |
| Cloud: | MAXPRO NVR, Milestone Arcules |
General |
|
| Dimensions: | HA35P5L37:
Camera lens: 27.5 x 22 x 22 mm (1.08“ x 0.87” x 0.87“) Lens cable length: 2000±35 mm (78.74”±1.38”) Main body With Bracket: 86.0 x 75.1 x 33.5 mm (3.39” x 2.96” x 1.32”) |
| Weight: | HA35P5L37: 0.127 kg (0.28 lb) |
| Casing: | Body: Metal + Plastic
Colour: Black |
| Operating temperatures: | -30 °C ~ 55 °C (-22 °F ~ 131 °F ) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, DDNS |
| Security: | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2&TLS1.3, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance, Built-In encryption chipset |
