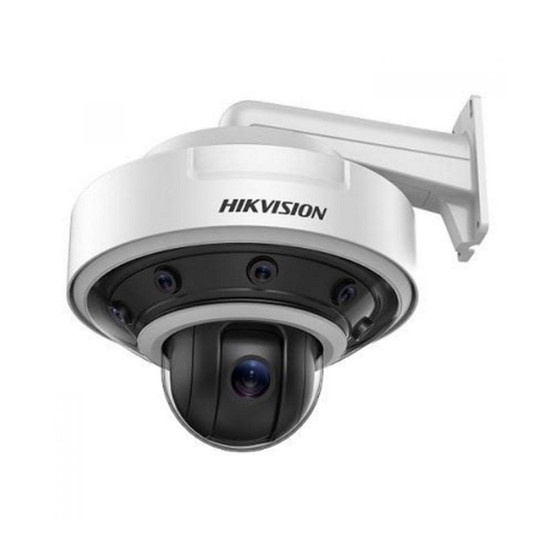

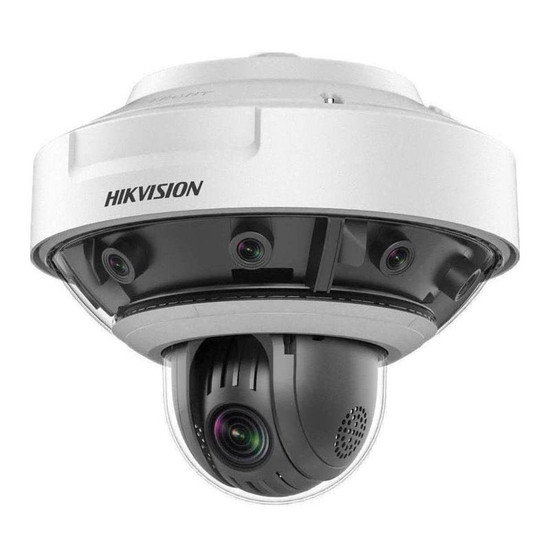

Hikvision DS-2DP0818Z-D PanoVu outdoor 8MP multi-sensor IP camera with 180° overview and built-in HD 1080p PTZ

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2DP0818Z-D

This panoramic surveillance solution from Hikvision consists of four sensor modules that deliver a 180° overview in 8MP resolution, and a PTZ dome that enables the capture of clear close-ups in HD 1080p. The IP66-rated unit also features true/day night recording, making it ideal for 24-hour monitoring of exposed outdoor areas. In addition, It's supplied with a 36VDC power supply and supports MicroSD card recording.

The built-in PTZ dome features full pan/tilt functionality, with a 36x optical zoom for in-depth scene examination. Wide dynamic range (WDR) and 3D noise reduction are included to improve image quality in challenging lighting conditions. Various video motion detection alarms can be configured to alert users of possible incidents, and external devices can be connected via the unit's I/O ports to enhance alarm signalling. These motion detection alerts can also be set to trigger specific tasks such as guard tours or starting the automatic target tracking function to ensure activity is followed and captured.

Key features & benefits

• Multi-sensor unit consists of four sensor modules and a PTZ dome - offering wide area coverage and one click PTZ positioning
• IP66-rated housing provides protection against exposed outdoor conditions
• Sensor modules combine to deliver a 180° overview in 8MP at up to 30 frames per second (fps)
• PTZ dome captures HD 1080p resolution images at full frame rate
• Integrated PTZ dome's 36x optical zoom allows real-time investigation in regions of interest
• 16x digital zoom enables quick close-ups to be obtained
• WDR technology ensures the capture of details in high contrast scenes
• 3D noise reduction improves clarity within the image by reducing the image 'grain'
• Video motion detection alarms can be configured and also trigger actions such as automatic tracking or guard tours
• External alarm sources can be connected via built-in I/O ports to enhance alarm signalling
• Audio I/O ports support the connection of an external microphone and speaker to provide two-way audio
• Footage can be recorded locally onto an MicroSD card (not included)
• H.264 compression format offers further reductions on bandwidth and storage over H.264
• Dimensions: Φ 390 x 361.3mm
• Power consumption: 70W
• Warranty: 3 years

Compatible recording platforms

• Milestone XProtect

Typical applications

Part of the PanoVU series, the Hikvision DS-2DP0818Z-D IP camera offers 180° overviews in 8MP resolution, and PTZ monitoring for clear capture of details. Typical applications include large areas such as amusement parks, shopping centres and train station terminals.

Accessories

Included:

• Installation guide

Optional (please select from the dropdown menu):

• MicroSD card
• Hikvision DS-1603ZJ wall mount
• Hikvision DS-1668ZJ pendant mount
