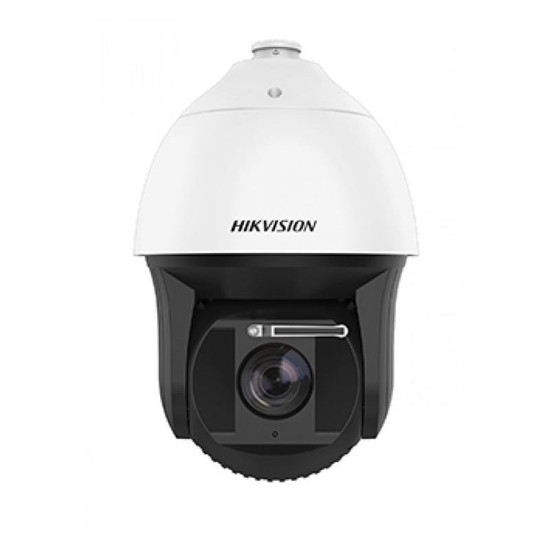

Hikvision DS-2DF8836IX-AELW outdoor-ready PTZ IP camera with 8MP resolution, up to 200m IR, 36x optical zoom and PoE+

This product has been discontinued, for alternative models please see Wisenet IP Cameras.

Overview of the Hikvision DS-2DF8836IX-AELW

This PTZ IP camera by Hikvision is capable of delivering 8 megapixel video footage at up to 25 frames per second (fps), complete with true day/night functionality and integrated infrared LEDs that provide up to 200m of night vision. Its housing is IP67-rated and also features a wiper for self-cleaning - making it suitable for use in demanding external locations. Additional features include support for Power-over-Ethernet Plus (PoE+) and remote access via the free Hikvision iVMS-4200 video management software (VMS).

Regions of interest can be examined using the camera's full pan/tilt functionality and 36x optical zoom. To help deliver clearer images in challenging lighting conditions, imaging technologies such as wide dynamic range (WDR) and 3D noise reduction are included. Edge recording (MicroSD card not included) is supported and can be triggered by a variety of configurable video motion detections. These alerts can also be set to inform users of activity in real-time via email notification. To help increase scene awareness, a range of Hikvision's "Smart" video detection methods are also included such as line crossing and intrusion detections.

Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.

Key features & benefits

• Capable of delivering 8 megapixel video footage at up to 25 fps for detailed CCTV surveillance
• Full pan/tilt functionality and 36x optical zooming for detailed examination of the scene
• True day/night functionality enables 24-hour footage of exposed areas
• Integrated infrared LEDs illuminate up to a distance of 200m
• Tough, IP67-rated casing with built-in wiper for self-cleaning
• WDR technology retains the level of detail across images with high contrast lighting
• Low-light images have less noise and require less bandwidth with 3D noise reduction
• External alarm sources can be connected via built-in I/O ports to enhance alarm signalling
• Audio I/O port supports the connection of a microphone (not included) to provide one-way audio
• Support for power and network connectivity through PoE+ enables simple installation
• Free remote access via Hikvision's iVMS-4200 Video Management Software
• Dimensions: Φ 266.6 x 410 mm
• PoE+ consumption: 50W
• Warranty: 3 years

Compatible Recording Platforms

• Hikvision Network Video Recorders (NVRs)
• Milestone XProtect

Typical applications

The Hikvision DS-2DF8836IX-AELW PTZ network camera offers detailed, round-the-clock surveillance of large outdoor locations in 8 megapixel resolution. Typical applications include university campuses, train terminals and industrial sites.

Accessories

Included:

• Installation guide

Optional (please select from the dropdown menu & accessories tab):

• PoE+ midspan
• MicroSD card
• Hikvision DS-1604ZJ wall mount
• Hikvision DS-1604ZJ pole mount
• Hikvision DS-1604ZJ corner mount
