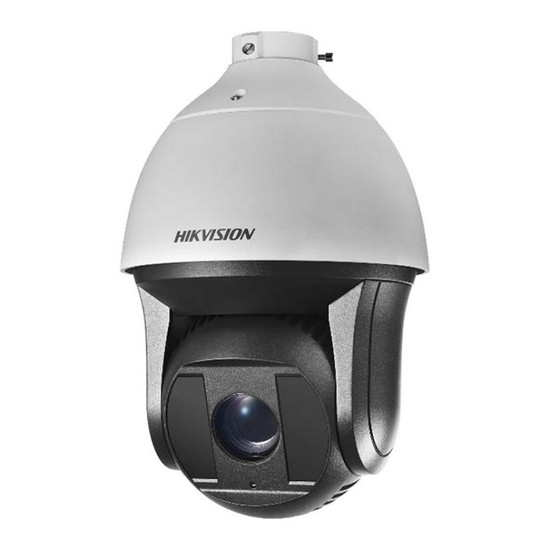

Hikvision DS-2DF8236IX-AEL outdoor PTZ IP camera with 2MP resolution, up to 200m IR, 36x optical zoom and PoE+

This product has been discontinued, for alternative models please see Wisenet IP Cameras.

Overview of the Hikvision DS-2DF8236IX-AEL

This outdoor-ready, Hikvision PTZ network camera delivers 2 megapixel video footage at full frame rate, complete with true day/night recording and up to 200m of infrared night vision. The IP67-rated unit offers full pan/tilt functionality, and 36x optical zooming for detailed examination of wide scenes. Additional features include support for Power-over-Ethernet Plus (PoE+) and remote access via Hikvision's free iVMS-4200 video management software (VMS).

Images captured in high contrast scenes are improved with wide dynamic range (WDR) technology. By ensuring details in both bright and dark areas are not lost, objects and individuals can be more easily identified. In addition, various video motion detection alarms can be set to prompt tasks such as moving the camera directly to a pre-set location - ensuring all activity is captured. These alarms can also be configured to trigger recording to the on-board MicroSD card (not included) - serving as a helpful backup of data if network connection is interrupted. The integrated alarm and audio I/O ports allow users to connect external devices that can help enhance alarm signalling or enable features such as two-way audio.

Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.

Key features & benefits

• Capable of delivering 2 megapixel video at up to 25 frames per second (fps)
• True day/night functionality enables round-the-clock CCTV surveillance of outdoor locations
• Built-in infrared LEDs illuminate up to a distance of 200m
• IP67 and IK10-rated housing offers protection from impact and weather
• Varifocal lens (5.7mm to 205mm) offers horizontal viewing angles from 2.0° to 59°
• 3D noise reduction contributes towards the delivery of clear, high quality images in low light
• WDR technology ensures the capture of details in high contrast scenes
• Video motion detection alarms can be used to trigger MicroSD card recording and alert users of activity
• Alarm signalling is enhanced when external sources are connected via I/O ports
• MicroSD card storage provides a data backup in the event of network failure (card not included)
• Power-over-Ethernet Plus (PoE+) support delivers power and network connectivity over a single cable
• Hikvision iVMS-4200 provides remote access to live views and recording playback - free of charge
• Dimensions: Φ 266 x 410mm
• PoE consumption: 50W
• Warranty: 3 years

Compatible Recording Platforms

• Hikvision Network Video Recorders (NVRs)
• Milestone XProtect

Typical applications

The affordable, Hikvision DS-2DF8236IX-AEL PTZ network camera provides 24-hour surveillance footage of wide outdoor locations. Typical applications include train stations, service centres and university campuses.

Accessories

Included:

• Installation guide

Optional (please select from the dropdown menu & accessories tab):

• PoE+ midspan
• MicroSD card
• Hikvision DS-1604ZJ wall mount
• Hikvision DS-1604ZJ-box corner mount
• Hikvision DS-1604ZJ-box pole mount
• Hikvision DS-1663ZJ ceiling mount
