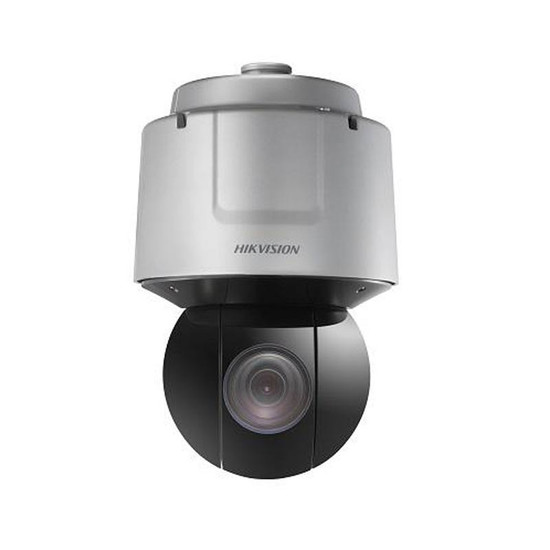

Hikvision DS-2DF6A836X-AEL outdoor PTZ IP camera with 8MP resolution, 360° pan, 25x optical zoom, edge storage and PoE+

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2DF6A836X-AEL

This PTZ IP camera is capable of delivering 8 megapixel resolution at up to 25 frames per second (fps). It offers full pan/tilt functionality and a 25x optical zoom for detailed examination of the scene. The model's IK10 and IP67-rated housing, combined with true day/night recording, makes it an ideal choice for monitoring wide outdoor areas round-the-clock. Additionally, the unit can be easily installed using Power-over-Ethernet Plus (PoE+) and supports edge recording.

The camera uses imaging technologies such as wide dynamic range (WDR) to help capture clear video footage in complex lighting conditions. Configurable video motion detection alarms can be set to alert users of possible incidents in real-time via notifications such as email. These motion detection alerts can also be used to trigger certain tasks such as moving directly to a preset location - ensuring all activity is captured. In addition, users have the ability to connect external devices via the built-in alarm and audio I/O ports to help enhance alarm signalling or enable features such as one-way audio.

Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.

Key features & benefits

• Capable of delivering 2 megapixel resolution at up to 25 fps, providing detailed CCTV footage
• Full pan/tilt functionality and 360° endless pan allows users to navigate easily across wide locations
• True day/night functionality enables round-the clock surveillance of outdoor areas
• 25x optical zoom enables real-time investigation into specific regions of interest
• IK10 and IP67-rated casing provides protection in exposed outdoor locations
• WDR technology retains the level of detail across images with high contrast lighting
• Low-light images have less noise and require less bandwidth with 3D noise reduction
• Video motion detection alarms can be configured to alert users of possible incidents in real-time
• Alarm signalling is enhanced when external alarm sources are connected via I/O ports
• External devices can be connected through audio I/O ports to enable one-way audio
• Recording to MicroSD card (not included) provides a backup solution if the network fails
• Support for power and network connectivity through PoE+ enables simple installation
• Remote monitoring via Hikvision's free iVMS-4200 video management software
• Dimensions: Φ 231.1 mm × 355.6 mm
• PoE+ consumption: 50W
• Warranty: 3 years

Compatible Recording Platforms

• Hikvision Network Video Recorders (NVRs)
• Milestone XProtect

Typical applications

The Hikvision DS-2DF6A836X-AEL PTZ network camera is an ideal choice for users that require 24-hour surveillance across wide outdoor locations. Typical applications include train station terminals, university campuses and amusement parks.

Accessories

Included:

• Installation guide

Optional (please select from the dropdown menu):

• PoE+ midspan
• MicroSD card
• Hikvision DS-1604ZJ wall mount
• Hikvision DS-1663ZJ-P ceiling mount
