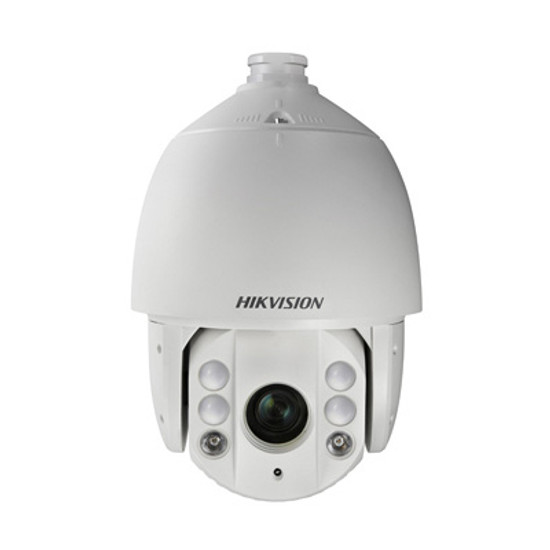

Hikvision DS-2DE7232IW-AE outdoor PTZ IP camera with 2MP resolution, up to 150m IR, 32x optical zoom and PoE+

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2DE7232IW-AE

This PTZ speed dome IP camera by Hikvision is capable of delivering up to 2 megapixel resolution images at 25 frames per second (fps) - 24-hours a day. Integrated infrared (IR) LEDs help to enhance night vision at a range of up to 150m, whilst the camera's IP66-rated casing allows it to be deployed in exposed outdoor locations. Full pan/tilt functionality and 32x optical zooming enables in depth viewing within the scene and installation is simplified, thanks to support for Power-over-Ethernet Plus (PoE+).

Using the camera's pan/tilt movements (including 360° endless rotation), users are able to navigate across wide areas - helpful when closely monitoring an incident. Configurable video motion detection alarms alert users of possible incidents in real-time via notifications such as email. These alarms can also be set to trigger specific actions, such as moving to preset position or start MicroSD card recording (card not included) - ensuring no vital footage is missed. Additionally, built-in alarm and audio I/O ports support the connection of external devices - helping to enhance alarm signalling or enable features such as two-way audio.

Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.

Key features & benefits

• Delivers 2 megapixel resolution at up to 25 fps - for detailed IP CCTV surveillance
• Full PTZ functionality and 360° endless pan allows users to navigate easily across wide locations
• True day/night functionality with integrated IR-cut filter provides round-the-clock surveillance
• 32x optical zoom enables real-time investigation into specific regions of interest
• Integrated infrared LEDs illuminate up to a maximum distance of 150m
• Quick close-ups of the original image can be examined using 16x digital zoom
• IP66-rated housing offers protection against harsh weather conditions
• Video motion detection alarms can be configured to alert users of possible incidents in real-time
• 3D noise reduction and WDR technology helps to improve image clarity in challenging light conditions
• External devices can be connected through audio I/O ports to enable two-way audio
• PoE+ supplies power and network connection over one cable for quick and cost-effective deployment
• Remote access to live video and playback of recording via the free Hikvision iVMS-4200 video management software (VMS)
• Dimensions: Φ 220mm × 353mm
• PoE consumption: 40W
• Warranty: 3 years

Compatible Recording Platforms

• Hikvision Network Video Recorders (NVRs)
• Milestone XProtect

Typical applications

The Hikvision DS-2DE7232IW-AE PTZ network camera is an ideal choice for users that require responsive, 24/7 security surveillance across wide outdoor areas. Typical applications include large car parks, service stations and outdoor shopping centres.

Accessories

Included:

• Installation guide

Optional (please select from the dropdown menu & accessories tab):

• PoE+ midspan
• MicroSD card
• Hikvision DS-1602ZJ wall mount
• Hikvision DS-1602ZJ pole mount
• Hikvision DS-1602ZJ corner mount
• Hikvision DS-1663ZJ ceiling mount
