| DS-2DE4220IW-DE

Hikvision DS-2DE4220IW-DE outdoor PTZ IP camera with 2MP resolution, up to 10m IR, 20x optical zoom, audio support and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

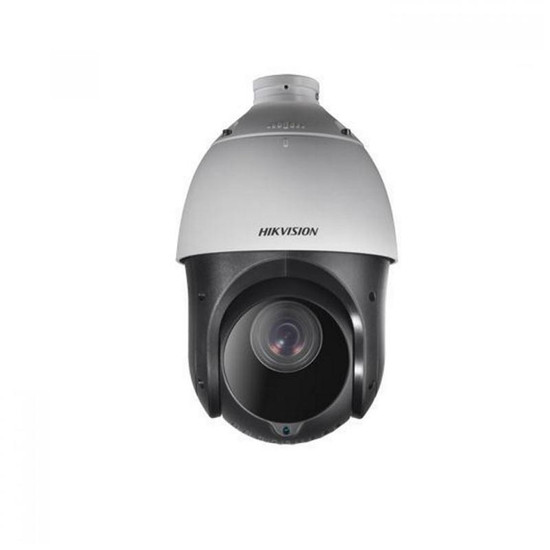

Overview of the Hikvision DS-2DE4220IW-DE

This Hikvision PTZ dome is capable of capturing 2 megapixel video at 25 frames per second (fps), complete with true day/night recording and up to 100m of infrared night vision. The outdoor-ready unit offers full pan/tilt functionality and a 20x optical zoom for detailed examination of outdoor locations. Additional features include edge storage and Power-over-Ethernet Plus (PoE+).

A handful of imaging technologies are also included, such as wide dynamic range (WDR) and 3D noise reduction to help improve the quality of images captured in difficult lighting conditions. A range of video motion detection alarms can be configured to alert users of possible incidents in real-time via notifications such as email. These alarms can also be set to trigger MicroSD card (not included) recording - ensuring all motion is captured. Additionally, a microphone and speaker (not included) can be connected through the integrated audio I/O ports to enable audio recording and verbal interaction through the camera.

Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.

Key features & benefits

  • Capable of delivering 2 megapixel resolution at up to 25 fps for detailed IP CCTV surveillance
  • Full PTZ functionality and 360° endless pan provides effective surveillance of a large scene
  • True day/night functionality with IR-cut filter allows users to navigate easily across wide locations
  • 20x optical zoom enables real-time investigation into specific regions of interest
  • Quick close-ups of the original image can be examined using 16x digital zoom
  • IP66-rated housing offers protection against harsh weather conditions
  • Configurable video motion detection alarms notify users of activity and enhance security monitoring
  • 3D noise reduction and WDR technology helps to improve image clarity in challenging light conditions
  • External devices can be connected via alarm I/O ports for enhanced alarm signalling
  • Connect a microphone and speaker (not included) through the audio I/O ports to enable audio recording and two-way communication with those close to the camera
  • PoE+ supplies power and network connection to the camera through one cable - simplifying installation
  • H.265 compression format is supported - offering further reductions on bandwidth and storage
  • Remote access to live video and playback of recording via the free Hikvision iVMS-4200 video management software
  • Dimensions: Φ164 x 295 mm
  • PoE consumption: 20W
  • Warranty: 3 years

Compatible recording platforms

Typical applications

The Hikvision DS-2DE4220IW-DE is an affordable, outdoor-ready PTZ dome that is ideal for organisations requiring 24-hour surveillance across wide locations. Typical applications include large car parks, service stations and outdoor shopping areas.



  • Installation guide

Optional (please select from the dropdown menu):

  • PoE midspan
  • MicroSD card
  • Hikvision DS-1602ZJ wall mount
  • Hikvision DS-1602ZJ corner mount
  • Hikvision DS-1602ZJ pole mount
  • Hikvision DS-1663ZJ ceiling mount
