| DS-2CD6424FWD-20/2M

Hikvision DS-2CD6424FWD-20/2M indoor modular IP camera with HD 1080p, on-board storage, electronic day/night and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2CD6424FWD-20/2M

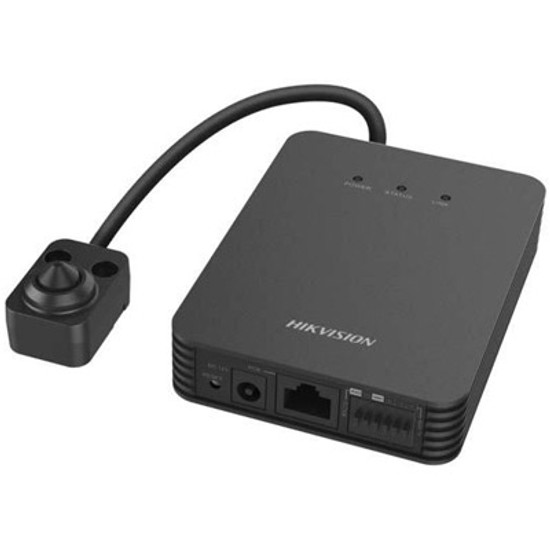

This indoor mini IP camera from Hikvision is capable of capturing HD 1080p resolution images at 25 frames per second (fps). The model consists of a main unit, separate sensor module and lens connected via a 2m connector cable allowing the unit to blend into its surroundings. With electronic day/night capability, this model is suitable for discrete round the clock surveillance. Additional features of the unit include on-board storage and Power-over-Ethernet (PoE).

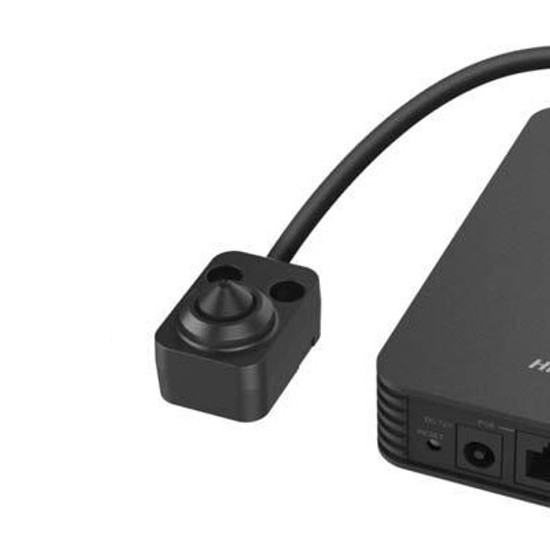

With its compact design, the camera features a 3.7mm L-shaped lens with a 65° angle of view and a 1/ 2.7" progressive scan CMOS sensor capable of providing HD 1080p at 25 fps. A 2m cable connects the lens module to the main unit so both parts can be placed away from each other, ideal for installation in tight spaces such as a cashier desk or ATM machine to provide unobtrusive monitoring.

Electronic day/night capability allows the camera to switch to black and white recording when low levels of light are detected – providing improved clarity in dimly lit environments. Defog technology filters dust and smoke from images to improve visibility. Wide dynamic range (WDR) captures detail in bright and dark areas to ensure balanced exposure, whilst 3D noise reduction improves the clarity of the image by reducing the 'grain' seen in low light video.

A tampering alarm and a variety of video motion detection alarms can be set to alert users when triggered, with notifications being sent to users via email or mobile devices. IVMS-4200 video management software is included with all Hikvision cameras and support for the Hikvision mobile applications enable viewing on the move and provide easy camera control.

This compact IP camera offers support for triple streaming and popular compression formats such as H.264, MJPEG4 and MPJEG, allowing the user to tailor recording settings to optimise use of network resources and storage. Alternatively, the integrated MicroSD card slot (card not included) allows up to 128GB of recordings to be stored on board the camera making a good choice for a stand-alone system Installation via PoE allows both a network connection and power to be fed to the camera through just one cable, reducing the time taken during installation and simplifying cabling.

Please note: this camera does not come with a power supply, please select one from the drop down menu above if required.

Key features & benefits

  • Suited for unobtrusive surveillance due to the modular and compact design
  • Capable of up to HD 1080p resolution at 25 fps
  • Low light video capture with electronic day/night functionality which switches to black and white recording to improve light sensitivity
  • 3D noise reduction and wide dynamic range (WDR) improve image clarity in challenging light conditions
  • Video motion and audio detection alarms allow alerts to be sent to user when disturbances are detected via email or mobile
  • Triple streaming support, allowing different data (H.264/MJPEG4/MJPEG) to be streamed simultaneously
  • Recording to MicroSD card provides a back up solution if the network fails
  • Installation via PoE reduces installation costs as only one cable is required
  • Included Hikvision iVMS-4200 video management software

Compatible recording platforms

Typical applications

The Hikvision DS-2CD6424FWD-20/2M modular network camera features a modular design suitable for indoor locations where discrete surveillance is key. Examples of this include cashier desks and eye level placement in entrance and exit ways.



  • Hikvision iVMS-4200 video management software
  • Installation guide / manual on CD
  • Fitting template
  • Screws (Security screw driver provided where required)


(please select from the above drop down menu if required)

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Hikvision DS-2CD6424FWD-20/2M

Environment: indoor
Type: modular
Sensor: 1/2.7” progressive scan CMOS
Lens: 3.7mm@ F2.5, angle of view: 65°
Power: 12 VDC ± 10%, PoE (802.3af), max: 6.5w
Audio: G.711/G.722.1/G.726/MP2L2 compression, 64Kbps(G.711) / 16Kbps(G.722.1)
Resolution: 1920 x 1080
Compression: H.264/MPEG4/MJPEG, H.264. Baseline profile/main profile/high profile
Frame-rate: 25fps (1920 x 1080) (1280 × 960) (1280 x 720)
Day/night: electronic day/night
Minimum illumination: colour: 0.01lux @ F1.2, AGC on, b&w: 0.028lux @ F2.0, AGC on
Imaging: rotate mode, saturation, brightness, contrast, grayscale adjustable, zone optional back light compensation (BLC), regions of interest (ROI), defog, wide dynamic range, 3D noise reduction
Viewing, detection & recording
Privacy masking: not given
Number of users: not given
Alarm detection: video motion detection, defocus detection, face detection, IP address conflict
Alarm action: full screen monitoring, send email, trigger output, notify surveillance centre
Pre-/post-alarm buffer: not given
On-camera recording: built-in micro SD/SDHC/SDXC card slot, up to 128GB (card not included)
Direct-to-NAS storage: yes, supports NFS,SMB/CIFS
Recording software included: Hikvision iVMS-4200 video management software
Network: 1 RJ45 10 M/100 M Ethernet interface with PoE
Audio: 1 3.5mm audio in(Mic in/Line in)/out interface
Alarm I/O: 1 input 1 output
Dimensions: main unit: 78 (W) × 105 (L) × 32 (H) mm, L-shape lens: 37 (W) x 26 (L) x 25 (H) mm
Weight: main unit: 2.10kg, L-shape lens: 0.99kg
Warranty: 2 years
Mounting methods: not given
Operating temperatures: –30°C to 60°C humidity 95% or less (non-condensing)
Power consumption: max. 6.5W
Dynamic DNS: yes
Protocols supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, IPv6, Bonjour
QoS: yes
Security: user authentication, watermark, IP address filtering, anonymous access, reset
ONVIF compliant: yes
