| DS-2CD4224F-I

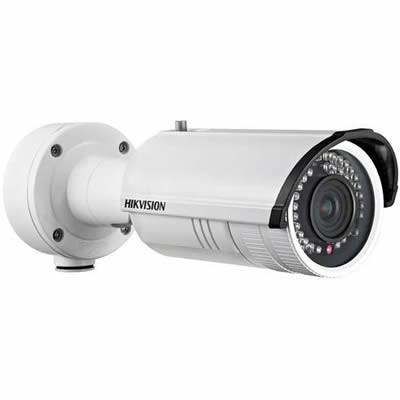

Hikvision DS-2CD4224F-I outdoor bullet IP camera with full HD 1080p, up to 80m IR night-vision and SMART features

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2CD4224F-I

Affordable IP66-rated DS-2CD4224F-I external network bullet camera from Hikvision with built-in Smart infrared LEDs providing up to 80m of night-vision. Other features include full HD 1080p, varifocal lens, true day/night, 3D noise reduction, digital Wide Dynamic Range, advanced SMART functions, intelligent video, defog, triple codec, on-board recording and PoE. Supplied with iVMS-4500 software and supports mobile access.

Producing full HD 1080p (30 frames per second) and with advanced 24-hour surveillance using an infrared-cut filter and built-in infrared LEDs, the DS-2CD4224F-I outdoor network camera from Hikvision provides high quality surveillance ideal for a wide range of applications. The varifocal lens allows viewing angle adjustment to precisely capture the scene required, providing a 40° - 16.5° horizontal angle of view. The integrated Smart IR LEDs intelligently adapt illumination to prevent saturation and can reach a maximum distance of 80m. IP6-rated, the camera provides durable CCTV monitoring suitable for external installation.

The Hikvision DS-2CD4224F-I incorporates a variety of imaging enhancement technologies to improve image capture in range of challenging conditions. 3D noise reduction provides images with less noise in low-light surveillance scenes, whilst digital Wide Dynamic Range (WDR) clearly captures both bright and dark areas within a scene, ensuring balanced video. If the camera is subject to fog, haze, smoke or dust, defog technology enhances clarity within images to improve visibility.

Featuring Hikvision’s advanced Smart functions, the DS-2CD4224F-I delivers reliable and accurate security monitoring, using Smart Face Detection in addition to intrusion detection, defocus detection, motion detection, line crossing, dynamic analysis and tampering alarm to alert users to activity detected in specific areas. Smart Video Quality Diagnosis (VQD) monitors blur, brightness and colour contrast, alerting the user to any abnormal qualities that may effect video analysis.

A MicroSD card slot (card not included) allows users to store video on-board the camera, providing a data back up solution in the event of a network failure. Installation using Power over Ethernet (PoE) is quick and simple, using a single cable for power and network connection. By using an advanced codec algorithm, the DS-2CD4224F-I minuses the system’s load and storage requirements. H.264, Motion JPEG and MPEG-4 compression formats are so supported.

Included with all Hikvision cameras is iVMS-4500 video management software. Users can access video remotely using the iOS and Android Hikvision mobile app.

Please note: this camera does not come with a power supply, please select from the drop down menu above if required.

Key features & benefits

  • Captures smooth full HD 1080p video footage (up to 30 fps)
  • Provides surveillance at all times using infrared-cut filter to switch between true day/night modes
  • Optimum IR illumination with Smart LEDs, preventing overexposure
  • Improves the capture of detail in high contrast scenes using Digital Wide Dynamic Range (WDR)
  • Clearer footage in low-light with 3D noise reduction
  • Clearer visibility in smoky, foggy, hazy and dusty conditions with defog technology
  • Advanced Smart features including Video Quality Diagnosis, Smart IR, Smart codec and Smart Face Detection
  • Intrusion detection, defocus detection, motion detection, line crossing detection, dynamic analysis, tampering alarm
  • On-board recording to MicroSD card (card not included) provides low-cost, decentralised storage
  • Simplified installation using PoE
  • Included Hikvision iVMS-4500 video management software
  • Convenient mobile access via iOS and Android devices

Compatible recording platforms

Typical applications

The Hikvision DS-2CD4224F-I outdoor network bullet camera delivers high quality surveillance 24-hours a day with advanced night-time capabilities and is ideal for most general external CCTV applications. Typical applications include petrol stations, schools, car parks and loading bays.



  • Hikvision iVMS-4500 video management software
  • Choice of varifocal lens (please select from the drop down menu above)
  • Installation guide
  • Fitting template
  • Security screw driver
  • IP66 cat5e glands

Optional (please select from the drop down menu above if required):

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Hikvision DS-2CD4224F-I

Environment: outdoor (IP66)
Type: fixed bullet
Sensor: 1/2.8” progressive scan CMOS
Lens: 8~20mm @F1.6 lens (optional), angle of view: 40° ~16.5°
Power: 12 VDC ± 10%, PoE (802.3af)
Resolution: 1920 × 1080
Compression: baseline profile/main profile/high profile, H.264/MPEG4/MJPEG, Smart codec
Frame-rate: 50 Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720). 60 Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Day/night: IR cut filter (auto/schedule/alarm trigger), Smart IR LED range up to 80m
Minimum illumination: 0.01 lux @ F1.2, AGC on, 0.014 lux @ F1.4, AGC on, 0 lux with IR
Imaging: rotate mode, saturation, brightness, contrast, grayscale adjustable though client software or web browser, 3D digital noise reduction, digital wide dynamic range, zone configurable back light compensation, highlight compensation, defog, electronic image stabilisation and ROI support
Viewing, detection & recording
Privacy masking: yes
Number of users: not given
Alarm detection: intrusion detection, defocus detection, motion detection, face detection, line crossing detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Alarm action: full screen monitoring, send email, trigger output, notify surveillance centre
Pre-/post-alarm buffer: N/A
On-camera recording: built-in Micro SD/SDHC/SDXC slot, up to 64 GB (card not included)
Direct-to-NAS storage: NAS (support NFS, SMB/CIFS)
Recording software included: Hikvision iVMS-4500
Power: 12 VDC ± 10% , PoE (802.3af)
Network: 1 RJ45 10M/100M ethernet port
Dimensions: 98 x 105 × 328.8 mm
Weight: 1.7 kg
Warranty: 2 years
Mounting methods: wall
Operating temperatures: –30°C to 60°C
Power consumption: max. 11W
Dynamic DNS: yes
Protocols supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP,DNS, DDNS, RTP,RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, IPv6, Bonjour
QoS: yes
Security: user authentication, watermark, IP address filtering, anonymous access, reset
ONVIF compliant: yes
