| DS-2CD2512F-IS-2.8MM

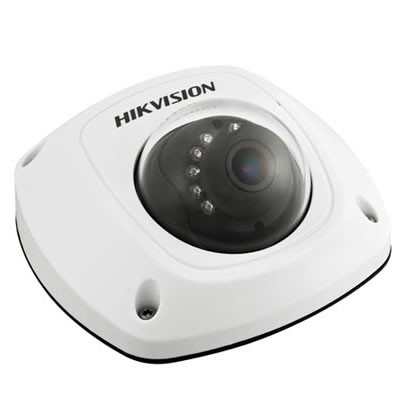

Hikvision DS-2CD2512F-IS-2.8MM outdoor mini dome IP camera, 1.3MP resolution, IR illumination up to 10m & on-board storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the Hikvision DS-2CD2512F-IS-2.8MM

This product is discontinued, for alternatives please see Wisenet IP Cameras

This cost-effective outdoor mini dome IP camera by Hikvision features 1.3 megapixel resolution at 25 frames per second. The unit has an IP-66 weather resistance rating making it suitable for outdoor use. The camera features a 2.8mm lens with a horizontal viewing angle of up to 92.5° providing coverage of a wide field of view. This model is capable of true day/night surveillance with infrared LEDs illuminating up to 10m, making this CCTV camera an appropriate choice for smaller scale outdoor monitoring. Additional features include on-board storage up to 64GB, Power-over-Ethernet (PoE) and support for mobile viewing via Hikvision video management software.

This low-cost camera delivers good quality security surveillance for outdoor locations where basic monitoring or recording is needed around the clock. Equipped with an infrared-cut filter, the camera will automatically switch from colour to black and white video dependent on light levels, ensuring optimum image capture 24 hours a day. Integrated IR LED illumination allows the user to view up to 10m of night-vision video footage and 3d noise reduction technology reduces image ''grain'' enhancing overall low light monitoring.

Video motion detection methods within this unit, such as intrusion and tampering alarms, ensure a good level of security surveillance appropriate for smaller locations or home use. Alerts via email and mobile messaging provide flexible remote viewing in addition to simple and effective camera control. The Hikvision Smart audio technology enables the use of two-way audio within the scene, as well as this, users are able to record audio and have the added ability of interactive communication with those in the camera's field of view.

With the use of two common compression formats (H.264 and MJPEG) the user has various options of how they want to handle their data and bandwidth. Recordings can be stored internally or onto a MicroSD card (card not included) which means this camera is ideal for a stand-alone installation.

The unit is powered via PoE meaning power is supplied to the camera through one cable, reducing installation costs and eliminating the need for a separate power supply. Hikvision iVMS-4500 video management software is included with this IP camera, users can also access the camera remotely via mobile devices using the iOS or Android app.

Please note: this camera does not come with a power supply, please select one from the drop down menu above if required.  A variation on this model with a 2.8mm lens can also be selected from the 'Select Model' dropdown above.

Key features & benefits

  • Captures video in 1.3 megapixel resolution at 25 fps
  • True day/night image capture using infrared-cut filter switches between capture modes giving 24/7 surveillance
  • Video capture in total darkness with built-in infrared LEDs providing up to 10m illumination
  • Produces images in high contrast scenes using wide dynamic range technology
  • Hikvision's 3D noise reduction technology enhances low light images
  • Built in audio technology enables two-way sound between user and scene
  • IP66-rated weather-resistant casing offers robust protection in harsh weather conditions
  • Compression formats including H.264 and MJPEG support multiple options during configuration
  • On-board recording enables the camera to be used as a complete all-in-one surveillance solution
  • Power via PoE reduces installation costs as only one cable is required
  • Included Hikvision iVMS-4500 video management software
  • Mobile access is supported using iOS or Android app

Compatible recording platforms

Typical applications

The Hikvision DS-2CD2512F-IS-2.8MM outdoor mini dome network camera features making this model an attractive CCTV choice for small IP video installations that require a robust and affordable camera. Typical applications include external areas to the rear of small shops and personal use such as garage security.



  • Hikvision iVMS-4500 video management software
  • Installation guide / manual on CD
  • Fitting template
  • Screws (Security screw driver provided where required)


  • PoE midspan (please select from the above drop down menu if required)
  • Hikvision DS-1272ZJ-110 - wall bracket
Back To Top

Key technical features of the Hikvision DS-2CD2512F-IS-2.8MM

Environment: outdoor (IP-66)
Type: fixed
Sensor: 1/3” progressive scan CMOS
Lens: 4mm @F2.0, angle of view: 92.5°
Power: 12 VDC ± 10%, PoE (802.3af)
Audio: two-way, G.711/G.722.1/G.726/MP2L2 compression, 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32-128Kbps (MP2L2) bit rate
Resolution: 1280 × 960
Compression: H.264/MJPEG, H.264 main profile
Frame-rate: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
Video overlay: not given
Day/night: IR cut filter with auto switch, IR range up to 10m
Minimum illumination: 0.01 lux @F1.2, AGC ON, 0 lux with IR
Imaging: rotate mode, saturation, brightness, contrast, sharpness adjustable through client software or web browser, zone configurable back light compensation (BLC), regions of interest (ROI), wide dynamic range, 3D noise reduction
Viewing, detection & recording
Privacy masking: not given
Number of users: not given
Alarm detection: video motion detection, tampering alarm
Alarm action: full screen monitoring, send email, trigger output, notify surveillance centre
Pre-/post-alarm buffer: not given
On-camera recording: built-in micro SD/SDHC/SDXC card slot, up to 128GB (card not included)
Direct-to-NAS storage: yes supports (NFS, SMB/CIFS)
Recording software included: Hikvision iVMS-4500 video management software
Network: 1 RJ45 10M / 100M Ethernet port with PoE
Audio: 1 input 1 output
Alarm I/O: 1 input 1 output
Dimensions: 99.3(W) × 96.7 (L) × 52.8 (H) mm
Weight: 0.6kg
Warranty: 2 years
Mounting methods: indoor/outdoor wall mount, pendent mount available separately
Operating temperatures: –30°C to 60°C humidity 95% or less (non-condensing)
Power consumption: max. 5W
Dynamic DNS: yes
Protocols supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,Qos, IPv6,Bonjour
QoS: yes
Security: user authentication, watermark, IP address filtering, anonymous access, reset
ONVIF compliant: yes
