| DS-2CD2232-I5

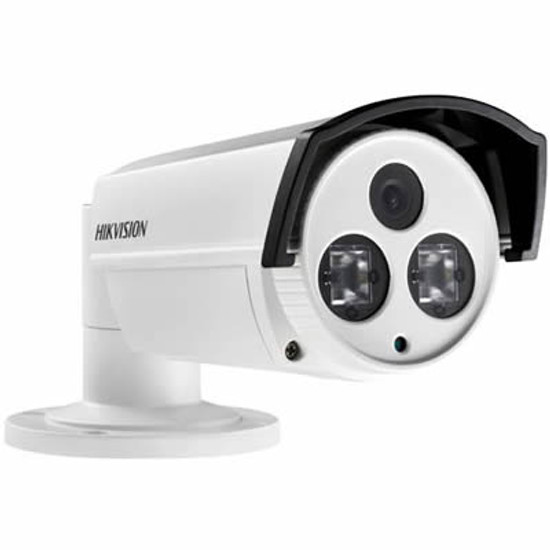

Hikvision DS-2CD2232-I5 outdoor bullet IP camera with 3 megapixel resolution, EXIR IR illumination up to 50m and HD 1080p

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Hikvision DS-2CD2232-I5

DS-2CD2232-I5 external bullet network camera from the Hikvision value range, capable of 3 megapixel resolution or full HD 1080p and with up to 50m night-vision from built-in EXIR infrared LEDs. Also features PoE, intelligent video, digital Wide Dynamic Range, 3D noise reduction, dual codec and ONVIF support. Comes with Hikvision software and allows mobile viewing.

Low-cost and user-friendly, the Hikvision DS-2CD2232-I5 outdoor bullet network camera provides 24-hour surveillance ideal for most general CCTV applications, capturing smooth full HD 1080p video at 30 frames per second or higher resolution 3 megapixel video at 20 fps. Featuring an infrared-cut filter for ‘true’ day/night switching in addition to EXIR IR LEDs delivering long-range night-vision up to 50m, the DS-2CD2232-I5 offers high performance round-the-clock monitoring. IP66-rated, the camera can be installed outdoors and is protected against damage from harsh weather.

3D noise reduction technology improves low light image capture of the DS-2CD2232-I5, reducing noise and blur to provide clear video. In challenging lighting conditions where bright highlights and dark shadows exist simultaneously, digital Wide Dynamic Range (WDR) enhances detail capture to assist with event analysis. The DS-2CD2232-I5 provides advanced monitoring, incorporating line crossing, intrusion detection, motion detection and tampering alarm capabilities to alert users to activity in specific areas. Dual codec provides flexibility for video compression, the camera supports H.264 and MJPEG.

Power over Ethernet (PoE) support makes the DS-2CD2232-I5 simple to install, whilst ONVIF support enables easy integration into existing IP video systems. Users can access video using the iOS and Android free mobile app, enabling remote viewing. Included with the DS-2CD2122-I5 is Hikvision iVMS-4500 video management software.

The Hikvision DS-2CD2232-I5 is available with a 4mm or 6mm lens, please select choice from the drop down menu above.

Please note: this camera does not come with a power supply, please select from the drop down menu above if required.

Key features & benefits

  • Delivers 3 megapixel resolution video at 20 fps or full HD 1080p (30 fps)
  • Durable IP66-rated casing allows outdoor installation
  • 24-hour monitoring with infrared-cut filter enabling ‘true’ day/night switching
  • EXIR infrared LEDs provide up to 50m of night-vision and enable the camera to capture video in complete darkness
  • Improved visibility in low light using 3D noise reduction technology, also reducing bandwidth usage
  • Balanced image capture in high contrast scenes using digital Wide Dynamic Range (WDR) technology
  • Intelligent video features include intrusion detection, line crossing, motion detection and tampering alarm, providing advanced security monitoring
  • Support for H.264 and Motion JPEG compression
  • Low-cost and easy to install via Power over Ethernet (PoE)
  • ONVIF compatible
  • Included Hikvision iVMS-4500 video management software
  • iOS and Android mobile support for convenient remote management

Compatible recording platforms

Typical applications

The Hikvision DS-2CD2232-I5 outdoor network bullet camera delivers advanced 24-hour surveillance, providing CCTV ideal for external applications that require high resolution round-the-clock video capture and security monitoring. Typical examples include loading bays, train stations, petrol stations and car parks.



  • Hikvision iVMS-4500 video management software
  • Installation guide
  • Fitting template
  • Security screw driver
  • IP66 cat5e glands


  • PoE midspan (please select from the drop down menu above)
  • DS-1275ZJ vertical pole mount
  • DS-1260ZJ junction box
Back To Top

Key technical features of the Hikvision DS-2CD2232-I5

Environment:outdoor (IP66)
Type:fixed bullet
Sensor:1/3” progressive scan CMOS
Lens:4mm @ F2.0 (6mm optional), 2048 × 1536: angle of view: 70° (4mm), 43.3° (6mm), 1920 × 1080: angle of view: 79° (4mm), 49° (6mm)
Power:12 VDC ± 10% , PoE (802.3af)
Resolution:2048 × 1536
Frame-rate:50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720), 60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
Day/night:IR cut filter with auto switch, EXIR IR LED range up to 50m
Minimum illumination:0.07 lux @F1.2, AGC ON, 0 lux with IR
Imaging:rotate mode, saturation, brightness, contrast, sharpness adjustable through client software or web browser, ROI support, 3D noise reduction, digital wide dynamic range, backlight compensation - zone optional
Viewing, detection & recording
Privacy masking:yes
Number of users:not given
Alarm detection:line Crossing, intrusion detection, motion detection, tampering alarm, storage exception
Alarm action:full screen monitoring, send email, trigger output, notify surveillance centre
Pre-/post-alarm buffer:N/A
On-camera recording:not supported
Direct-to-NAS storage:NAS (NFS, SMB/CIFS)
Recording software included:Hikvision iVMS-4500
Power:12 VDC ± 10% , PoE (802.3af)
Network:1 RJ45 10 M/100 M Ethernet interface
Dimensions:105 × 104.8 × 263.1mm
Weight:0.95 kg
Warranty:2 years
Mounting methods:wall, ceiling, optional vertical pole mount and junction box
Operating temperatures:–30°C to 60°C
Power consumption:max. 7 W (max. 9 W with IR cut filter on)
Dynamic DNS:yes
Protocols supported:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP,DNS, DDNS, RTP,RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, IPv6, Bonjour
Security:IP address filtering, anonymous access, watermark
ONVIF compliant:yes
