With exceptional clarity in very low, or no light, and extremeWDR technology, this weather and vandal-proof dome CCTV camera delivers crisp and detailed images 24-hours a day, alongside intelligent AI analytics for comprehensive scene investigation.

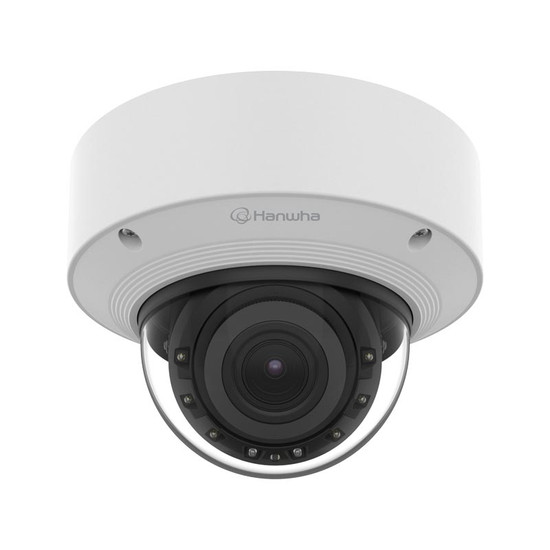

Featuring remarkable low light performance and incredibly fast processing speeds, the XNV-C7083R is a robust, outdoor-ready solution for efficient monitoring of indoor and outdoor environments 24-hours a day. Built to withstand wet weather and vandalism, it is equipped with a varifocal lens and 4MP resolution sensor housed within an IP66/67 and IK10 rated casing. Capture full-colour video in extremely low light with the F1.4-F3.0 lens and extremeWDR with excellent 150dB light compensation. In complete darkness, monochrome night vision is enabled for a WiseIR infrared throw of up to 40m, and WiseNR II technology uses AI to reduce motion blur.
Connect external devices such as alarms and speakers to the 2 x configurable I/O ports to trigger on events such as tampering, shaking and analytic events. Powerful AI-driven video analytics greatly enhances the accuracy of detecting motion and classifying a range of objects for more detailed surveillance insights. An external microphone can be used for audio detection, with sound classification recognising sudden loud sounds such as screams and explosions. PoE support facilitates an easy installation.
Users can rely on highly accurate object detection and classification with minimal false alarms, allowing operators to focus on important real-time events. In addition to motion detection and object classification of humans and vehicles, this unit is capable of identifying faces, cars, buses and bikes with a granular level of detail. Run scenarios such as people counting, loitering detection and virtual line crossing to improve overall security whilst also developing actionable insights into business performance. Retrieve footage rapidly with AI Forensic search.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | varifocal dome |
| Sensor: | 1/2.8" progressive CMOS |
| Lens: | Focal Length (Zoom Ratio): 2.8~10mm(3.6x) motorized varifocal
Max. Aperture Ratio: F1.4(Wide)~F3.0(Tele) Angular Field of View: H: 109.7°(Wide) ~ 30.4°(Tele) V: 60.8°(Wide) ~ 17.8°(Tele) D: 131.3°(Wide) ~ 35.3°(Tele) Min. Object Distance: 0.5m(1.64ft) Focus Control: Simple focus, Manual Lens Type: DC auto iris with hall sensor(IR corrected) |
| PTZ: | Support (Preset, Group) |
| Audio: | Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm Line out, Max.output level: 1Vrms |
| Power: | PoE: Max 12.95W, typical 10.8W
12VDC: Max 12.5W, typical 10.0W |
Imaging |
|
| Resolution: | 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame rate: | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)(WDR off)
Max. 30fps/25fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| IR illumination: | WiseIR 40m(131.23ft) |
| WDR | extremeWDR(150dB) |
| Video streaming: | Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Day/night: | Auto(ICR) |
| Minimum illumination: | Colour: 0.038Lux(F1.4, 1/30sec, 30IRE) B/W : 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Colour: 0.076Lux(F1.4, 1/60sec, 30IRE) B/W : 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps |
| Remote zoom / focus | included |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) Wisenet open platform |
| Analytics: | Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| Alarm triggers: | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm events: | When alarm trigger occurred
- File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
Video Management |
|
| On-camera recording: | Micro SD/SDHC/SDXC 1slot 512GB |
| Network video recorders: | Hanwha Vision NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Wisenet Viewer application, Wisenet WAVE, Milestone XProtect, ONVIF third-party VMS |
| Cloud: | Support |
General |
|
| Alarm I/O connections: | 2 configurable I/O ports |
| Dimensions: | ø160x118mm(ø6.30x4.65") |
| Weight: | 1450g(3.20 lb) |
| Casing: | White / Aluminum
Hard-coated dome bubble IP66/IP67, NEMA4X, IK10 12.7mm(1/2")(M20) single, double, 4" octagon, 4" square |
| Operating temperatures: | -40°C~+55°C(-40°F~+131°F)
* Start up should be done at above -20°C 0~95%RH(non-condensing) Humidity control /w AIR vent |
| Warranty: | 5-year |
| Firmware support to: | 5 years after EOL |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Security: | HTTPS(SSL) Login Authentication
Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM(Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP(UL 2900-1) |
