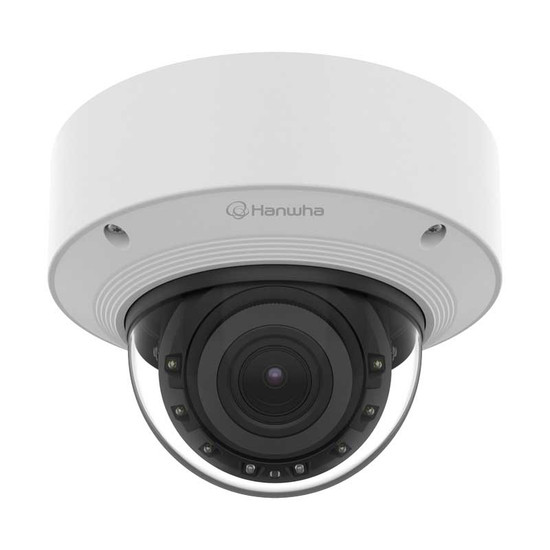

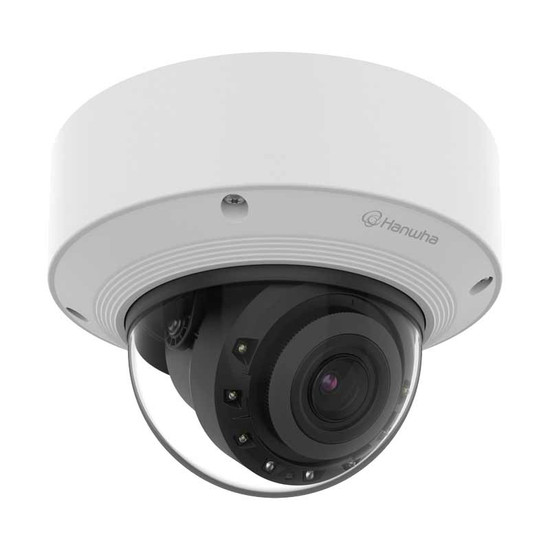

This 5MP vandal-resistant dome camera is powered by the advanced Wisenet 9 chipset, delivering AI video analytics for fast, reliable object detection. A motorised varifocal lens for 31°-99° viewing angle offers flexible and precise monitoring. ExtremeWDR and IR illumination up to 40m ensures dependable 24-hour performance. The IK10 and IP67 rated casing offers robust protection against impact and harsh weather, making it ideal for demanding outdoor environments.
The Wisenet 9 chipset with dual neural processing units (NPU) powers intelligent edge-based AI analytics, helping operators focus on real-time events for faster incident response. Reliable motion detection and object classification reduces false alarms by picking up people, faces, cars, buses, and bikes, visualised with colour-coded bounding boxes. Forensic AI search makes it easy to locate video clips with specific attributes, while features such as line crossing, loitering detection, heatmapping and people counting provide valuable insights for both security and business performance.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | varifocal dome |
| Sensor: | 1/2.8" CMOS |
| Lens: | Focal Length: (Zoom Ratio) 3.3~9.3mm(2.8x) motorized varifocal
Max. Aperture Ratio: F1.3(Wide)~F2.3(Tele) Angular Field of View: H: 99°(Wide)~31°(Tele) V: 71°(Wide)~23°(Tele) D: 133°(Wide)~39°(Tele) Min. Object Distance: 0.5m(1.64ft) Focus Control: Simple focus, manual Lens Type: P-iris(IR corrected) |
| Audio: | Audio In: Selectable(mic in/line in)
Audio Out: Line out |
| Power: | PoE: Max. 9.4W, typical 7.0W
Support Wisepower - Power monitoring(Max./Current/Avg.) - ECO mode |
Imaging |
|
| Resolution: | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Frame rate: | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@5MP Max. 5fps) |
| IR illumination: | WiseIR 40m(131.23ft) |
| WDR | extremeWDR (120dB) |
| Video streaming: | Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Day/night: | Auto(ICR) |
| Minimum illumination: | Colour: 0.04Lux(F1.3, 1/30sec, 30IRE)
BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Remote zoom / focus | included |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) Wisenet open platform |
| Analytics: | Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate
Attributes: Person(Gender, Clothing top/bottom color, Bag), Face(Age, Gender, Mask, Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color) Support BestShot Analytics events based on AI engine - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & fall detection, Face mask detection, Social distancing detection Analytics events - Defocus detection, Tampering, Shock detection, Audio detection |
| Alarm triggers: | Analytics, Network disconnection, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm events: | When alarm trigger occurred
- File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback(WAV, MP3) - MQTT: publication |
Video Management |
|
| On-camera recording: | Micro SD/SDHC/SDXC 1slot 1TB |
| Network video recorders: | Hanwha Vision NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Wisenet Viewer application, Wisenet WAVE, Milestone XProtect, ONVIF third-party VMS |
General |
|
| Alarm I/O connections: | 2 configurable I/O ports
*Support extra alarm I/O via optional I/O box |
| Dimensions: | ø160x118mm(6.30x4.65") |
| Weight: | 1210g(2.67lb)) |
| Casing: | White / Aluminum
Hard-coated dome bubble IP66/IP67, NEMA4X, IK10, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9) 12.7mm(1/2")(M20) single, double, 4" octagon, 4" square |
| Operating temperatures: | -40°C~+50°C(-40°F~+122°F)
+74°C(+165°F)(MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control with AIR vent |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP(StartTLS), ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), CDP, MQTT, Syslog |
| Security: | OS / Firmware Protect: Encrypted Firmware, Secure boot, Signed Firmware
User authentication: Digest Authentication, Prevent brute-force attack Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication: HTTPS, SRTP, WSS(Websocket secure) Access Control: IP-based access control, MAC-based access control, Auto logout Data Protect: Encryption Credentials, Encrypt compress for live recording file export Audit: Access / System / Event Log management Device ID: Device Certificate(Hanwha vision Root CA) Secure Storage: Secure element, SDcard partition encrypt(AES-256) Supply Chain Security: SBOM Security Certificate: ETSI EN 303 645, Secure element(FIPS 140-3 level3, CC EAL6+) |
