Hanwha Vision TNF-9010 parking guidance sensor with stereographic lens, 12MP resolution, WDR, 360° monitoring and dewarping, AI-based parking space detection analytics, LED illumination, alarm I/O and PoE

Overview of the Hanwha Vision TNF-9010 fisheye parking guidance camera

• 360° overviews with no blind spots, capable of monitoring up to 16 parking spaces simultaneously
• Quad views up to 1792x1344 resolution each thanks to the 12MP image sensor
• On-board digital dewarping smooths out individual views and removes distortion
• AI-based video analytics detect if vehicles are occupying parking spaces

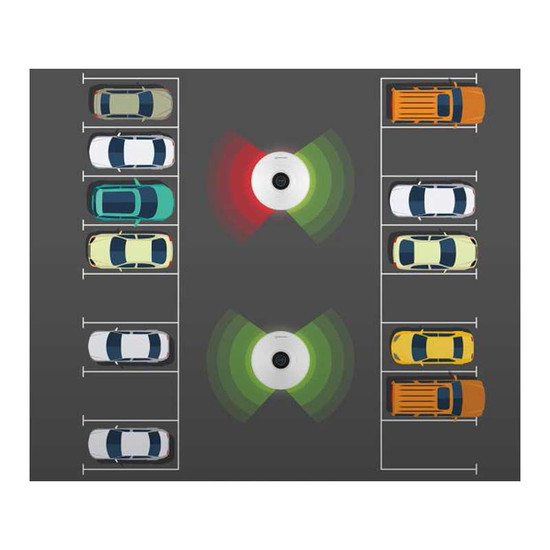

• Multi-coloured LED illuminators can visibly indicate the status of parking spaces and direct drivers in the right direction

Featuring a fisheye lens and on-board AI analytics, this intelligent IP camera is specifically engineered for monitoring the status of indoor parking spaces, and indicating whether they are occupied. The 12MP image sensor produces ultra-high-definition video up to 30fps, for smooth and detailed footage. Excellent low-light performance and extremeWDR optimisation makes this surveillance and status/direction indication device perfect for underground car parks where lighting can be diverse. Watch up to 16 parking spaces at once thanks to the wide angle fisheye lens, and integrate the video into a VMS via quad views which can be individually dewarped to remove distortion.

Each view can monitor up to 4 spaces at once, with AI analytics trained to detect vehicles and if they are occupying the specified spaces. Users can configure alerts if vehicles enter/exit the zones, which can activate external devices such as integrated alarm systems or speakers upon said events. LED lights illuminate the main body of the device, which can be used in single or split lamp modes for visible directional indication of free spaces, making finding a spot a breeze for drivers searching the car park.

Video Analytics

Parking detection analytics based on the AI engine ensure accurate and reliable monitoring of vehicles entering and exiting the field of view. Specifically engineered for vehicle monitoring, the camera is able to distinguish between other moving objects such as pedestrians, and filter them out for notifications, resulting in few to no false alarms. Once it comes into view, the vehicle can be visualised on-screen in colour-coded bounding boxes, allowing operators to keep track of its movement and receive alerts if it enters a predefined zone. The multi-coloured integrated LED illuminators can be configured to visibly display whether a space is free, or if a vehicle is parked in a restricted/reserved bay. Single and split lamp modes enables both sides to be coloured independently for customisable operation and as an indication of which direction a vehicle should proceed in to find a parking space.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Wisenet Viewer application
• Wisenet WAVE
• Hanwha Vision NVRs
• Milestone XProtect video management software

Example Use Cases

• Underground/multistorey car parks - monitor up to 16 spaces at once, identify if spaces are free or occupied, direct vehicles in the correct direction to find a space. The LED illumination visibly indicates the status of spaces. Receive alerts if vehicles enter restricted bays, integrate alarm sytems and activate external devices when events are triggered.

Accessories included

• Camera
• Installation guide
• Cable for testing monitor
• Drill template
• Audio & alarm cable
• Power terminal block
• Power cable
• 3 x mounting screws
• Connector cover
