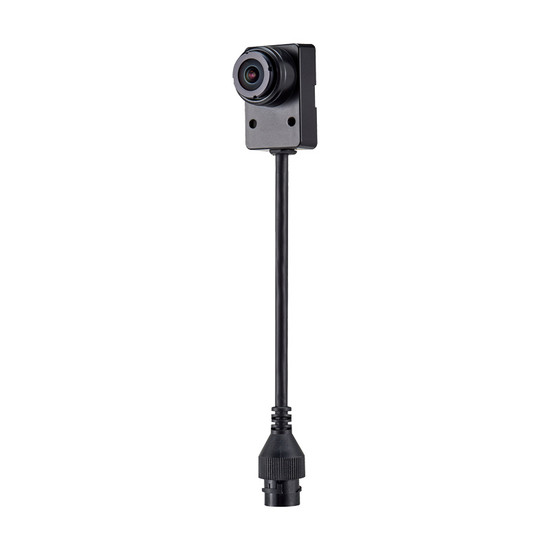

Hanwha Vision SLA-T2480VA flat cube pinhole sensor unit with 2MP sensor, 2.4mm fixed focal lens, WDR and 1080p resolution for use with PNM-9000QB remote unit

Overview of the Hanwha Vision SLA-T2480VA flat cube pinhole sensor

• 2MP image sensor for HD video in 1080p and 720p resolutions
• 2.4mm fixed focal lens
• 138° horizontal field of view
• Flat cube form factor can be installed flush against flat surfaces
• For use with Hanwha Vision PNM-9000QB remote unit

Designed to be installed in tight spaces where traditional cameras may not be suitable due to their size or appearance, this sensor provides high-quality, non-invasive monitoring for improved overall security. Ideal for small sites such as retail stores and banks, this sensor's flat cube design means it can be mounted flush against ceilings or walls with the provided mount, offering wide angle views of up to 138°.

Despite its ultra-compact size, it can record smooth and detailed video in 1080p HD resolution up to 30fps, ideal for surveillance in busy areas. Excellent low-light capabilities provides full colour images in lighting as low as 0.045 lux, whilst WDR ensures high-clarity images regardless of shadows or high-contrast. A detachable cable means it can be situated up to 8m away from the PNM-9000QB base unit.

Please note: This sensor is designed to be used alongside the Hanwha Vision PNM-9000QB remote unit, it cannot be used as a standalone product.

Example Use Cases

• General security - retail stores, banks, cashier desks, ATMs - reduce shrinkage, enforce procedure compliance, monitor threats such as break-ins and aggressive behaviour, capture vital evidence of potential crimes
• High security facilities - monitor interrogation rooms and confined areas without causing stress to individuals
• Healthcare - monitor wellbeing of patients and staff behaviour

Accessories included

• Sensor unit
• Installation guide
• Mounting box
• 8m detachable cable
• RJ12 connector
• Mount fitting screw

Key technical features of the SLA-T2480VA
