Hanwha Vision (Wisenet) | QNV-C9011R

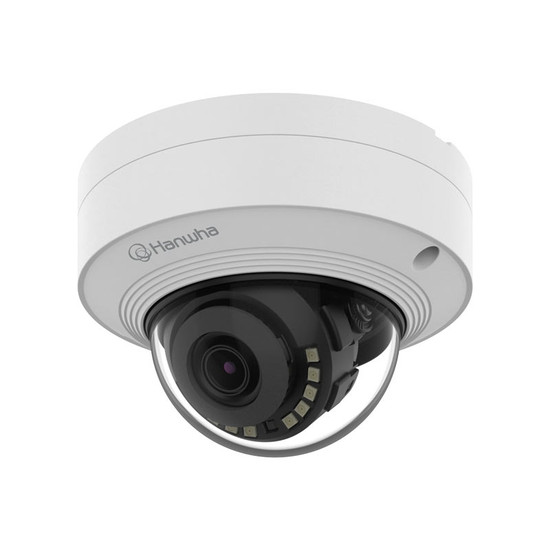

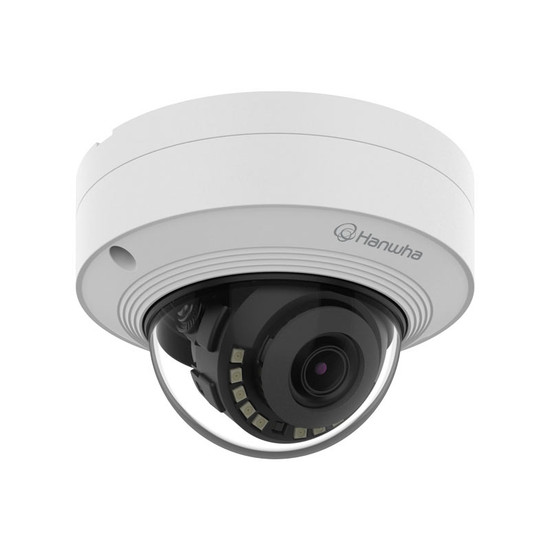

Hanwha Vision QNV-C9011R in/outdoor vandal-resistant AI mini dome IR camera
£366.00
Overview of the Hanwha Vision QNV-C8011R in/outdoor vandal-resistant IR mini dome camera
- 5MP sensor for detailed full HD video up to 2592x1944 resolution up to 30fps
- 3mm fixed focal lens delivers a 100° horizontal viewing field
- Integrated IR LEDs provide night vision up to 20m
- Highly accurate object detection and classification with intelligent AI-based analytics
- Improved clarity in low-light thanks to WiseNR II technology
Delivering a cost-effective and compact surveillance solution, this resilient, multi-purpose mini dome is IP66 and IK10-rated for effective vandal resistance, whilst delivering reliable and detailed around-the-clock footage from indoor and outdoor locations. Advanced AI-driven video analytics come preinstalled for intelligent object detection and classification, allowing users to enable alarms to be activated upon real-time events. Areas with contrasting light and shadows are optimised thanks to WDR, with up to 20m of range for IR illumination, resulting in clear monochrome images in complete darkness. Further AI-based technology includes WiseNR II which improves image clarity in low-light environments so important details aren't missed. Single cable installation is facilitated via PoE.
Video Analytics
Edge-based video analytics driven by AI enhances this camera's capabilities to deliver highly accurate object detection and classification, in turn reducing false alarms so operators can focus more on real incidents. Reliably identify humans and vehicles, as well as vehicle types such as cars, buses and bikes which can also be specifically searched for within live and recorded video for faster footage retrieval. Business intelligence scenarios such as virtual line crossing, people counting and loitering detection allow businesses to develop actionable insights into performance, in addition to improving overall security.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Wisenet Viewer application
- Wisenet WAVE
- Hanwha Vision NVRs
- Milestone XProtect video management software
Example Use Cases
- Entrance monitoring - Detect visitors, deter unwarranted behaviour, prevent unauthorised access, detect unwanted loitering, minimise vandalism
- Retail stores - Count customers, manage queues, identify area hotspots, minimise theft, handle false claims and monitor threats such as break ins
- Warehouses - Ensure procedure compliance, track and tracing of items and parcels, employee safety
Accessories included
- Camera
- Installation manual
- RJ45 waterproof cable accessories
Key technical features of the Hanwha Vision QNV-C8011R vandal-resistant AI mini dome IR camera
Camera |
|
| Environment: | indoor/outdoor |
| Type: | fixed mini dome |
| Sensor: | 1/2.8" CMOS, 5MP |
| Lens: | 3.0mm fixed focal
F1.6 H: 100°/ V: 73°/ D: 129° |
| PTZ: | digital PTZ only |
| Audio: | None |
| Power: | PoE(IEEE802.3af, Class3), Max 8.5W, typical 4.9W |
Imaging |
|
| Resolution: | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame rate: | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@8MP Max. 5fps) |
| IR illumination: | 20m(65.62ft) |
| WDR | WDR: Up to 120 dB depending on scene |
| Video streaming: | H.265/H.264: Main/High, MJPEG |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | Color: 0.03Lux(F1.6, 1/30sec, 30IRE)
BW: 0.003Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) |
| DORI (EN62676-4 standard): | Detect (25PPM/ 8PPF): 43.5m(142.71ft)
Observe (63PPM/ 19PPF): 17.5m(57.09ft) Recognize (125PPM/ 38PPF): 8.7m(28.54ft) Identify (250PPM/ 76PPF): 4.3m(14.27ft) |
| Analytics: | Classified object type: Person/Vehicle
Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), People counting, Vehicle counting, Queue management, Heatmap Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection |
| Alarm triggers: | Analytics, Network disconnect |
| Event action: | When alarm trigger occurred
- File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback |
Video Management |
|
| On-camera recording: | Micro SD/SDHC/SDXC 1slot up to 256GB |
| Network video recorders: | Hanwha Vision NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Wisenet Viewer, Wisenet WAVE, Milestone XProtect, ONVIF support for 3rd party VMS |
General |
|
| Alarm I/O connections: | NA |
| Dimensions: | ø110x77mm(ø4.33x3.03") |
| Weight: | 522g(1.15 lb) |
| Casing: | IP66, IK10-rated, White / Aluminum
Bubble : Hard-coated dome |
| Operating temperatures: | -40°C~+55°C(-40°F~+131°F) / 0~95% RH
* Start up should be done at above -30°C Humidity control /w Air vapor control |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast) |
| Security: |
OS / Firmware Protect Secure boot: Signed firmware, Firmware encryption
User authentication Digest Authentication: Prevent brute-force attack Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication: HTTPS, SRTP, WSS(Websocket secure) Access Control: Access control based on IP address Data Protect: Authentication information encryption, ZIP compression encryption Audit: User Access/System/Event log management Device ID: Device Certificate(Hanwha Private Root CA) Secure Storage: SDcard partition encrypt Security Certificate: Secure by default |
