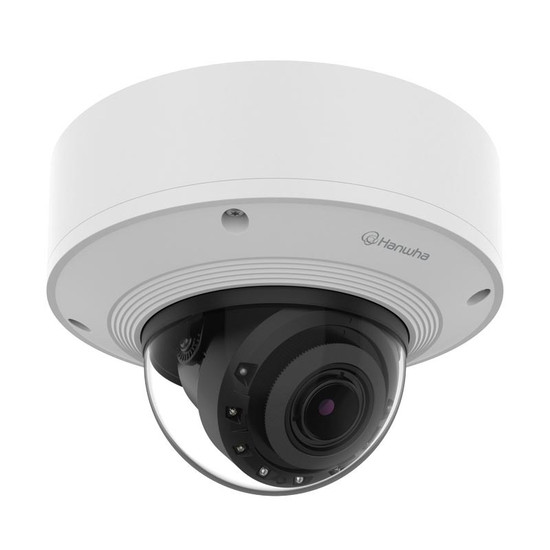

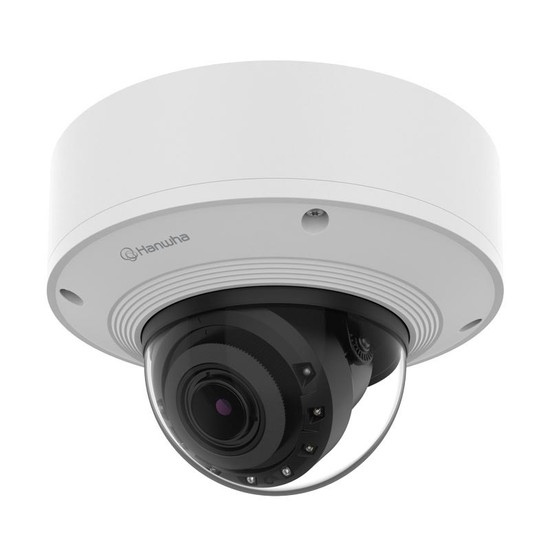

This advanced dome camera enables the capture and recording of HD video directly to the on-board 2TB SSD storage. It includes 1 Wisenet WAVE licence for a powerful, all-in-one surveillance solution without needing servers and extra running costs.
Do away with costly servers and additional running costs with this truly edge-based, serverless recording solution, offering an all-in-one high-performance camera and storage device. Start recording high-definition video straight out of the box to the embedded SSD with 2TB storage. Take advantage of the fully customisable Wisenet WAVE VMS platform, as the unit comes preloaded with 1 licence, which also enables access from desktop and mobile devices. The internal storage is also capable of recording from up to 5 additional Hanwha Vision cameras (Wave licenses need to be purchased if not included with those cameras), making this an ideal solution for a complete video surveillance network across smaller sites such as cafes and retail stores, or a reliable storage backup for existing systems.
There is also a 1TB SDD version of the PNV-A6081-R.
Featuring a 2MP image sensor for 1080p video, you can monitor indoor and outdoor environments 24-hours a day with WDR and IR illumination up to 40m for night vision in complete darkness. Receive alerts on detection of objects with AI-enhanced analytics for improved accuracy, and activate external devices such as speakers and sirens via I/O. An IP66/67 and IK10-rated casing provides effective protection against wet weather and vandalism, with the modular assembly construction and PoE+ support facilitating easy installation.
Detect and classify objects with nuanced accuracy thanks to video analytics enhanced by AI-driven algorithms. Persons and vehicles can be visualised on screen in colour-coded bounding boxes. Improve general security and develop actionable insights into business performance with scenarios such as virtual line crossing, appear/disappear and loitering warning. The powerful granular level of classification can identify more specific attributes of objects such as gender, age, types of vehicle, and colours which can reduce footage retrieval times thanks to Forensic AI search. Defocus and tampering detection triggers alerts if there is indication that the device is being compromised through vandalism.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | varifocal SolidEDGE dome |
| Sensor: | 1/2" CMOS, 2MP |
| Lens: | Focal Length (Zoom Ratio): 4.38~9.33mm(2.13x) motorized varifocal
Max. Aperture Ratio: F1.3(Wide)~F2.15(Tele) Angular Field of View: H: 104°(Wide)~44°(Tele) V: 55°(Wide)~24°(Tele) D: 124°(Wide)~51°(Tele Min. Object Distance: 0.5m(1.64ft) Focus Control: Simple focus Lens Type: DP-iris(IR corrected) |
| PTZ: | Support (Preset, Group) |
| Audio: | Selectable(mic in/line in)
Line out |
| Power: | PoE+: Max 19.2W, typical 14.4W
12VDC: Max 17.5W, typical 12.7W Power redundancy failover |
Imaging |
|
| Resolution: | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Frame rate: | H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics
off)
MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| IR illumination: | 40m(131.23ft) |
| WDR: | Yes |
| Video streaming: | Unicast(6 users) / Multicast
Multiple streaming(Up to 5 profiles) |
| Day/night: | Auto(ICR) |
| Minimum illumination: | Colour: 0.007Lux(F1.3, 1/30sec, 30IRE)
BW: 0.0007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Colour: 0.014Lux(F1.3, 1/60sec, 30IRE) BW: 0.0014Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps Colour: 0.028Lux(F1.3, 1/120sec, 30IRE) BW: 0.0028Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) |
| Analytics: | Classified object type: Person/Face/Vehicle/License plate
Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection |
| Alarm triggers: | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm events: | When alarm trigger occurred
- File upload(image): e-mail/FTP - Notification: e-mail - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
Video Management |
|
| On-camera recording: | Embedded SSD storage 2TB |
| Network video recorders: | N/A |
| Video Management Software: | Wisenet WAVE |
| Cloud: | WAVE sync Cloud Video Management |
General |
|
| Alarm I/O connections: | 1 x configurable I/O port |
| Dimensions: | ø180x130mm(ø7.09x5.12") |
| Weight: | 1900g(4.19 lb) |
| Casing: | White / Aluminum
Hard-coated dome bubble IP66, IP67, IP6K9K, IK10, NEMA4X Compatible conduit hole / gangbox: 19.1mm(3/4")(M25) single, double, 4" octagon, 4" square |
| Operating temperatures: | -30°C~+55°C(-22°F~+131°F) / 0~95%RH(non-condensing)
* Start up should be done at above -20°C Humidity control /w AIR vent |
| Warranty: | 5-year |
| Firmware support to: | 5 years after EOL |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Security: | TPM 2.0(FIPS 140-2 level 2)
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Private Root CA) Secure Boot, Signed firmware |
Hanwha Vision (Wisenet) | PNV-A6081R-E1T
