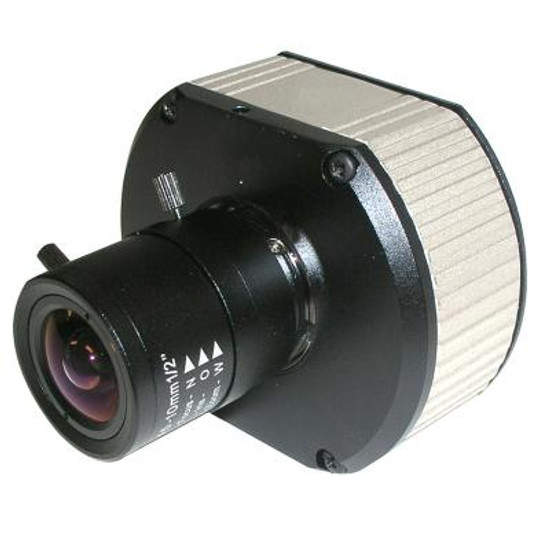

Arecont Vision AV5115DN 5 megapixel at 14fps compact IP camera with day/night function, varifocal lens, H.264 and PoE
Overview of Arecont Vision AV5115DN
This product is discontinued, an alternative model is the Mobotix S26
The Arecont Vision AV5115DN compact IP surveillance camera has one the fastest frame rates for a megapixel camera on the market, producing 5 megapixel footage at up to 14 frames per second, ideal for capturing details which may be too fast or too small for standard security cameras. The camera's infrared-cut filter switches video from full colour to black and white during periods of low-light, so than monitoring can continue on a 24-hour timescale (infrared lighting required for low-light monitoring).
A number of software features help the camera to further improve low-light performance. Pixel Binning helps improve light sensitivity by grouping pixel information, while Moonlight mode adjusts exposure times to allow more light to enter the lens.
The AV5115DN is compatible with a range of recording devices and security software which support the PSIA standard, providing more flexible selection of security system hardware. H.264 compression also helps to save on bandwidth by efficiently compressing footage.
Please note: This camera does not come with a power supply. Please select one from the options above if required.
Key features & benefits of Arecont Vision AV5115DN
- 5 megapixel resolution and 14fps frame rate provide clear, high quality footage at one of the fastest frame rates on the market
- Binning technology increases light sensitivity by combining pixel data together in difficult light conditions
- Switchable infrared-cut filter allows the camera to provide full colour and highly-sensitive monochrome footage for round-the-clock surveillance
- Integrate the camera quickly and easily with third-party recording devices
- Power over Ethernet provides power and data through one cable, saving time on installation
- Compact size offers unobtrusive surveillance of both indoor and outdoor areas (housing required for outdoor use)
Typical applications of Arecont Vision AV5115DN
The Arecont Vision AV5115DN is a useful surveillance solution for many indoor or outdoor requirements where high resolution video is required at high frame rates, including airports, ferry terminals and ports, casinos, prisons, industrial sites, department stores and shopping malls.
Accessories for Arecont Vision AV5115DN
- Arecont AV5115DN IP camera (AV5115DN)
- Wall/ceiling mount camera bracket (VB1B)
- Your choice of lens (from above)
- CD with setup software
Key technical features for Arecont Vision AV5115DN
Camera | |
Environment: | indoor/outdoor |
Type: | compact box type |
Sensor: | 1/2.5" 5 megapixel CMOS sensor |
Lens: | selectable above: MPL4-10 varifocal 4mm-10mm (horizontal viewing angle 71° to 33°), F1.6, manual iris, CS mount; MPL8-16 varifocal 8mm-16mm (horizontal viewing angle 40° to 21°), F1.6, manual iris, CS mount |
Digital zoom/PTZ: | digital |
Power: | Power over Ethernet IEEE 802.34af, 12-48V DC, 24V AC |
Video | |
Available resolutions: | 2592x1944 and 1024x768. Other resolutions available through cropping |
Compression: | H.264 / MJPEG |
Frame-rate: | up to 14 fps @ 2592x1944; 16.5 fps @ 2560x1600; 21 fps @ 2048x1536; 31 fps @ 1600x1200; 29 fps @ 1920x1080; 41 fps @ 1280x1024 |
Bandwidth control: | bit rate from 100Kbps to 10Mbps |
Day/night: | switchable infrared-cut filter |
Minimum illumination: | colour: 0.3 lux (unbinned), 0.15 lux (binned); monochrome: 0 lux when used with infrared light source |
Imaging: | fixed shutter; programmable shutter speed |
Viewing, detection & recording | |
Multi-camera viewing: | 8 non-identical streams |
Auto-flip: | yes |
Privacy masking: | yes |
Recording triggers: | motion detection (1024 zones) |
Compatible recording platforms (not included) | |
Software: | Milestone XProtect (Using PSIA driver) |
Network video recorder: | QNAP Network Video Recorders or any PSIA-compliant recording device |
Connections | |
Power: | push-button connections for 12-48V DC, 24V AC |
Network: | 10/100Mbps RJ-45 Ethernet Network Interface, Power over Ethernet (PoE) IEEE 802.3af |
Alarm I/O: | 1 in 1 out |
Other | |
Dimensions: | 76mm(W) x 63.5mm(H) x 31.7mm(D) (without lens) |
Weight: | 164g (without lens) |
Colour: | silver/black |
Mounting methods: | surface/in-ceiling mount (housing required) |
Operating temperatures: | -5°C (23 °F) to 60°C (140 °F) |
Power consumption: | 4.5W |
Protocols supported: | TFTP, HTTP, RTSP and RTP |
