| AT-MC1004

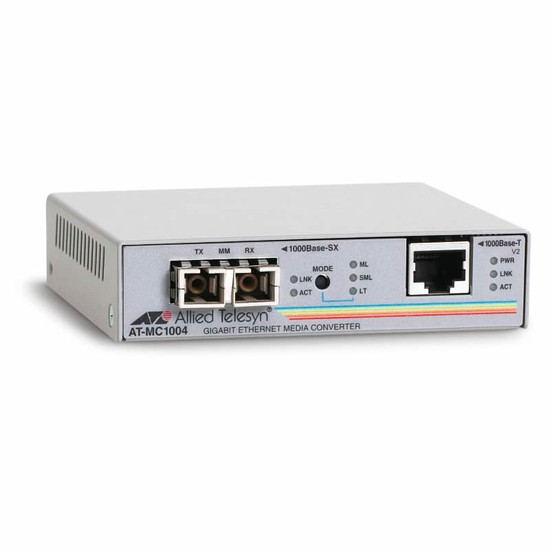

Allied Telesis AT-MC1004 1000T Gigabit Ethernet to 1000SX (SC) standalone media converter

This product is discontinued. An alternative can be found in Network Switches.

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the Allied Telesis AT-MC1004

A 1000T to 1000SX media converter capable of joining Gigabit networks that are physically separated by large distances, the Allied Telesis AT-MC1004 features MMF fibre connectivity, full-duplex operation, auto MDI/MDI-X and MissingLink support. This media converter connects any managed or unmanaged 1Gbps (1000Mbps) switch or hub using standard 1000T RJ45 connections and converts the signal via its 1000SX port.

The AT-MC1004 makes use of Allied Telesis' unique MissingLink and Smart MissingLink features where it can both present a visual alert and pass on the fibre connection's status to other network nodes, meaning that remedial actions can be taken quickly and automatically such as triggering SNMP traps to trigger when the link drops out.

The unit features a rack or wall-mountable design. Rack mounting is done with an additional Allied Telesis rack housing which can incorporate up to 12 standalone units enabling centralised aggregation of incoming fibre

Key features & benefits

  • Ports: port 1: 1000T, port 2: 1000SX (SC), fibre type: MFF
  • IEEE standard: 1000SX (SC)
  • Tx wavelength: 850nm
  • Rx wavelength: 850nm
  • Max fibre distance: 550m
  • Max frame size: 9KB
  • Diagnostic LEDs: 8
  • PSU type: external
  • Dimensions: 10 x 9.5 x 2.5cm
  • Weight: 0.3 kg
  • Warranty: 2 years (or 5 years if product is registered)
