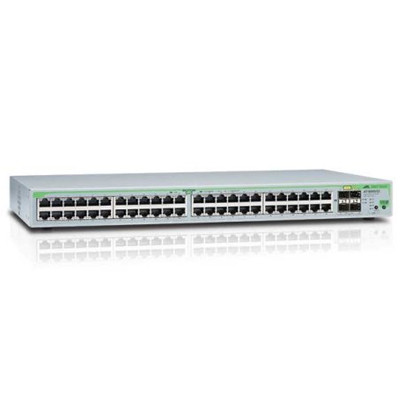

Allied Telesis AT-FS750/52 WebSmart switch with 48 x 10/100TX ports, 2 x 10/100/1000T ports and 2 x SFP/1000T combo ports

Overview of the Allied Telesis AT-FS750/52

This Allied Telesis Fast Ethernet switch features 48 x 10/100TX ports and web-based management. It also includes 2 x 10/100/1000T ports and 2 x SFP/1000T combo ports. Part of the eco-friendly FS750 series, this low-power switch is ideal for use in medium to larger sized businesses.

An ideal solution for the integration of management at the edge of a network, the unit offers the simplicity of unmanaged switches with the high-performance of managed switches. The user can configure a range of simple features such as port mirroring, priority queues and port trunking. These features, alongside support for up to 8K MAC addresses provide a cost-effective, yet secure and reliable switching solution.

The unit requires minimal configuration for fast set up and can be desktop or wall mounted for flexible installation.

The eco-friendly switch minimises power consumption with the use of an efficient internal power supply and a low-power chipset. It includes a range of power saving features such as reduced power to ports during after-work hours. This helps minimise power consumption by up to 25% over non-eco friendly switch units.

Key features

• Form factor: wall / desktop mount
• 10/100TX ports: 48
• SFP: 2 (combo)
• Power supply: external
• MAC address table size: 8K
• Cooling: fan
• Dimensions: 550 (W) x 350 (D) x 100 (H) mm
• Weight: 3.8kg
• Management: web-based
• Warranty: 2 years (or 5 years if product is registered)
