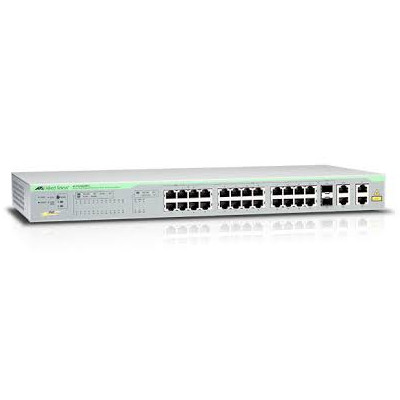

Overview of the Allied Telesis AT-FS750/28PS
This Fast Ethernet switch by Allied Telesis features twenty four 10/100TX ports and web-based management. A cost-effective solution, the unit also includes 2 x 1000T/SFP combo ports and 2 x 10/100/1000T ports for Gigabit connections.
This unit delivers standard Power-over-Ethernet in all ports (ideal for most IP cameras) or, alternatively, PoE+ from four of the ports to supply power to more demanding IP cameras (up to 30W).
This WebSmart switch offers the simplicity of unmanaged switches, combined with the high-performance of managed switches. Some basic management features are available including port-based VLANs, IEEE 802.1p, port trunking and port mirroring. These features combined, provide a cost-effective solution for the integration of simple management and security into a network solution.
Minimal configuration alongside multiple mounting options make this switch an ideal choice for users requiring a simple and efficient switching solution.
Back To Top
- 24 x 10/100T ports
- Maximum PoE power: 194W
- PoE supported ports: 24
- PoE+ supported ports: 4
- Form factor: desktop / wall / rack mount
- Power supply: internal
- SFP ports: 2
- MAC address table size: 8K
- Cooling: fan
- Dimensions: 440 (W) x 250 (D) x 44 (H) mm
- Weight: 3.2kg
- Ideal environment: environments such SMB and retail stores
- Warranty: 2 years (or 5 years if product is registered)
