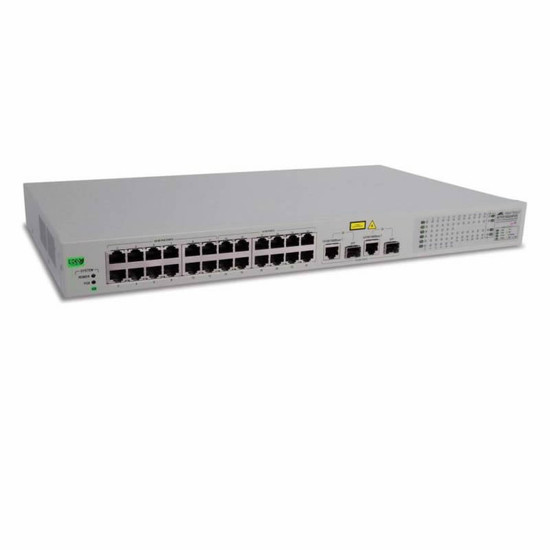

Allied Telesis AT-FS750/24POE WebSmart Switch with 24 x 10/100TX ports (12 PoE-capable) and 2 1000T/SFP ports

Overview of the Allied Telesis AT-FS750/24POE

The Allied Telesis AT-FS750/24/POE is a 24-port unmanaged, or GUI-managed 10/100TX PoE switch with the capability to supply PoE power to 12 ports and up to 6 IP cameras or other PoE devices with standard, 802.3af PoE. Whilst it can deliver PoE to 12 ports its maximum PoE power budget is 100W. It features 2 x SFP ports for connecting in disparate networks via fibre optics.

Allied Telesis' WebSmart switches integrate the ease of use of unmanaged switches with the reliability and performance of managed switches (in this case GUI-managed), providing a cost-effective solution for management at the network edge. Some simple management features are available in this switch including port-based VLANs, IEEE 802.1p, QoS, port trunking/link aggregation, port mirroring and priority queues.

Key features & benefits

• 24 x 10/100T ports
• Maximum PoE power: 100W
• PoE supported ports: 12
• 10/100/1000T: 2 (combo)
• SFP: 2 (combo)
• Power supply: internal
• Max number of full power ports: 6
• Mode: A
• PoE power: 100W
• Cooling: fan
• QoS IEEE 802.1p priority queues: 4
• IEEE 802.1Q VLANs: 256
• Dimensions: 44.4 x 32.2 x 4.3 cm
• Weight:4.13 kg
• Form factor: wall mount/desktop/rack mount
• Ideal environment: classroom, home office, SMB, security at the edge
• Warranty: 2 years (or 5 years if product is registered)

Accessories

• Rack mount/wall mount brackets and screws
• Power cord
• User manual/install guide on CD
• Rubber feet
