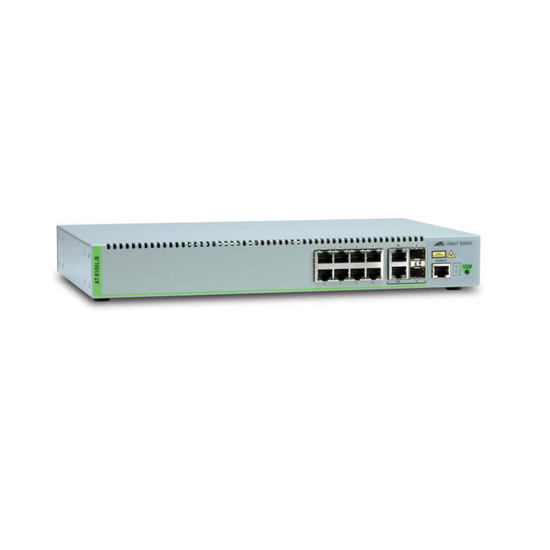

Allied Telesis AT-8100L/8POE Layer 2–4 fast Ethernet PoE+ switch

Overview of the Allied Telesis AT-8100L/POE

The Allied Telesis AT-8100L/POE is an 8 port PoE Fast Ethernet edge switch with layer 2-4 functionality. Designed for rapid deployment with minimum configuration time, the 8100L/POE offers features like Voice VLAN, LLDP-MED, Enhanced Stacking and web management via GUI. All 8 ports are PoE-capable and with a power budget of 185W the unit can supply 802.3at (High PoE) and 802.3af PoE to up to 6 cameras or other devices.

The unit additionally has two combo SFP ports at 100 or 1000Mbps for fibre backhaul. The dual speed ports make this unit ideal for where Gigabit fibre switches may be phased in over time. The 8100L series of Fast Ethernet switches allows for connectivity to legacy 100FX hardware until the device is upgraded to Gigabit.

Key features & benefits

• Form factor: wall mount/desktop/rack mount
• Switch functionality: Layer 2-4
• 10/100TX ports: 8, 10/100/1000T ports: 1, SFP: 2 (combo) 100 or 1000Mbps
• PoE enabled ports: 8
• Max number of full power ports: 6
• PoE power: 185W
• PSU type: fixed internal
• Mode: B
• MAC address table size: 16K
• Cooling: variable-speed fan
• Temperature range: 0 to 40°C
• QoS IEEE 802.1p priority queues: 8
• IEEE 802.1Q VLANs: 4096
• Routing: basic
• Dimensions: 33 x 20.5 x 4.3cm
• Weight: 2.29 kg
• Warranty: 2 years (or 5 years if product is registered)

Accessories:

Included:

• AC power cord
• Management cable (RJ-45 to DB-9)
• Rubber feet for desktop installation
