QNAP | VS-4116U-RP-PRO+
QNAP VioStor VS-4116U-RP PRO+ Network Video Recorder with 16 channels, up to 16TB storage, Linux-embedded, rack mountable
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This product is now discontinued, for alternative products see Synology Network Video Recorders (NVRs)

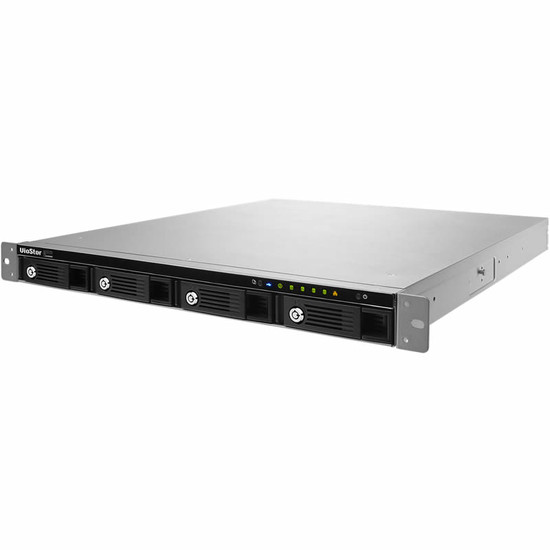

Overview of the QNAP VioStor VS-4116U-RP PRO+
16 channel QNAP VS-4116U-RP PRO+ network video recorder (NVR) from the QNAP VioStor series, with 4 x HDD for up to 16TB storage. Additional features include Linux operating system, Intel dual-core processor, 250 Mbps throughput and remote viewing via VMobile app.
The QNAP VS-4116U-RP PRO+ network video recorder enables up to 16 IP cameras to be recorded and the 4 HDD slots provide up to 16TB of storage with RAID capabilities. The powerful Intel dual-core processor and 4GB RAM enable 250 Mbps throughput for the stable recording of high frame rate and multi megapixel network cameras, and the unit is Linux-embedded so is at reduced risk of viruses and system crash. The QNAP VS-4116U-RP provides rack mountable installation, ideal for expanding existing recording systems and also providing neat, convenient installation.
Recording can be controlled by the smart recording feature, which maintains low quality recording until activity is detected, then frame rate and quality increases to ensure events are captured in detail for identification and analysis. Recording can also be set to continuous or manual modes, and also on alarm trigger and user-defined modes, providing a recording system that can be tailored to suit the application. Users are alerted to an event via on screen popup, which provides more information on the event when clicked. Areas can be viewed in closer detail and monitored effectively using digital PTZ, auto cruising and preset positioning.
Additional features of the QNAP VioStor VS-4116U-RP include HDMI local display output, e-map capability, multi-stream support, two-way audio and intelligent video search. Users can access video recordings remotely via mobile devices using the QNAP VMobile app.
Key features & benefits
- Able to record up to 16 cameras

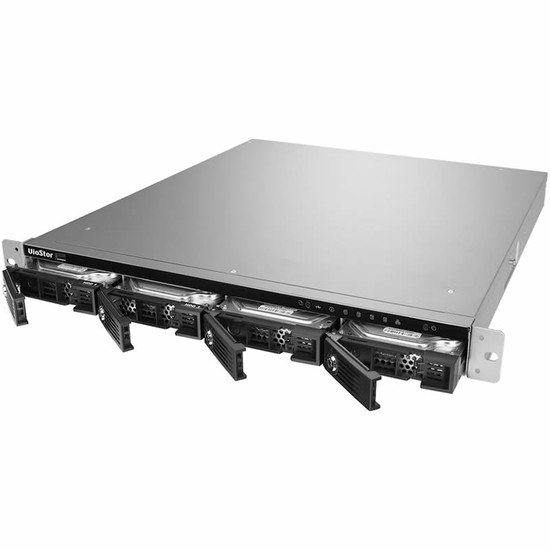

- 4 HDD drives provide storage space up to 16TB
- Smooth, stable multi megapixel and high frame rate recording with Intel dual-core processor
- 250 Mbps capability
- 4GB RAM
- HDMI local display output
- Support for H.264, Motion JPEG, MPEG-4 and MxPEG compression
- Multi-stream support
- Two-way audio capability
- Various recording modes including smart recording
- Real-time digital watermarking
- Dual Gigabit LAN ports
- Easy installation
- Intelligent video search
- On screen popup on event
- Compatible with wide range of platforms and browsers
- E-map
- Advanced event management
- Compatible with panamorph and fisheye lenses
- Linux-based
- RAID capability with hot swap design
- Health scanning
- UPS support
- One touch video backup and scheduled remote replication
- Security controls
Typical applications
The QNAP VS-4116U-RP PRO+ network video recorder is designed for medium to large IP video installations that have rack space. This unit is also ideal for expanding an existing IP video recording system. Typical applications include hospitals, supermarkets, warehouses and airports.
Accessories
Included:
- CD-ROM
- Ethernet cable x 2
- Power cord
- Screw pack
- QIG
- Hard disk lock
- Terminal block x 6
- 1U rail kit
- Screw x 8
- Handle x 2
- Mount kit x 2
Optional:
- Hard disk drive
Key technical features for QNAP VioStor VS-4116U-RP PRO+
Unit | |
| Maximum no. of cameras: | 16 |
| HDD: | 4 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive |
| CPU and OS: | dual-core Intel processor, embedded-Linux |
| Maximum throughput: | 250 Mbps |
| Audio: | audio in/out for local display |
| Power: | input: 100-240V AC, 50/60Hz, output: 250W |
Video | |
| Resolution: | maximum 10 megapixel |
| Compression: | H.264/MPEG-4/M-JPEG/MxPEG (depending on the camera models) |
| Frame-rate: | full HD 1080p 30 fps (per channel) |
Viewing, detection & recording | |
| Camera control: | digital PTZ, PTZ control |
| Playback control: | play, pause, stop, reverse play, next/ previous video file, different speed control |
| Intelligent search: | motion detection, missing object, foreign object, out of focus, and camera occlusion |
| Recording mode: | continuous, manual, schedule, alarm, multiple alarm recording schedules, auto snapshot |
| Alarm detection: | motion detection, alarm input, connection failure, recording failure, user-defined event |
| Alarm notifications: | video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output and user-defined action |
| Backup: | one-touch-auto-video-backup button to external USB, schedule remote replication to a NAS on the local network |
| Mobile support: | VMobile iPhone, iPad, Android mobile app |

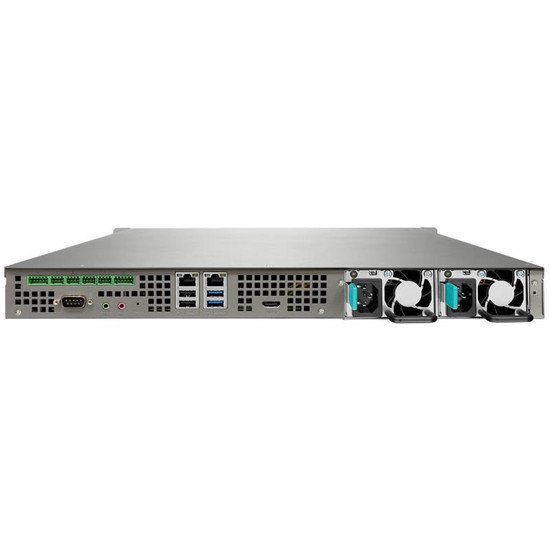

Connections | |
| USB drive backup: | 2 x USB 3.0 port (back: 2), 5 x USB 2.0 port (front: 1; back: 4) |
| LAN port: | 2 x Gigabit RJ-45 Ethernet port |
| Video output: | 1x HDMI, suggested video output resolution: 1920 x 1080 (full HD) |
Other | |
| Dimensions: | 44 (H) x 439 (W) x 499 (D) mm |
| Weight: | 11.54 kg (net) |
| Operating temperatures: | 0°C to 40°C |
| Power: | input: 100-240V AC, 50/60Hz, output: 250W |
| Power consumption: | 80W (with 4 x 2TB HDD installed) |
| Protocols supported: | HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP |
| Security: | authority management, host access control, auto log off, event logs, on-line users list, digital watermarking, K-Lock security slot for theft prevention |
