Axis Communications | 0835-001

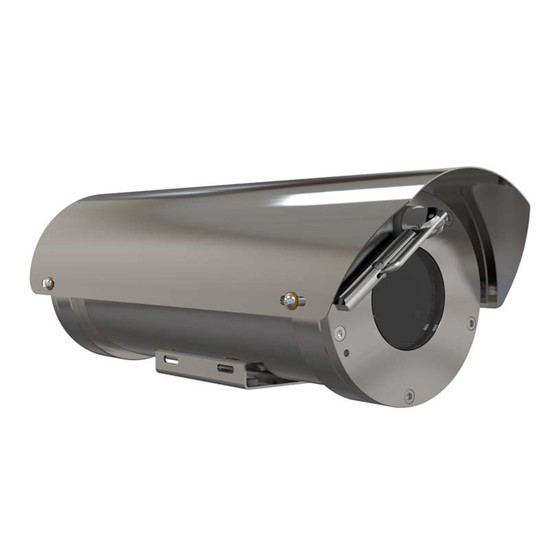

Axis XF40-Q1765 stainless steel ATEX-Certified IP camera with HD 1080p resolution, 18x optical zoom, WDR & edge storage
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
An ideal choice for deployment in high-risk environments that are exposed to the most demanding conditions, this ATEX-rated unit provides reliable monitoring with advanced imaging technologies and high-performance analytics.
- ACAP support for 3rd party analytics
- WDR helps to improve imaging
- 18x optical zoom & 12x digital zoom
- Varifocal lens: 59°-4° viewing angle
- HD 1080p resolution
This product is discontinued, an alternative model is the Axis ExCam XF Q1785
Overview of the Axis XF40-Q1765
- Captures full HD 1080p resolution video at up to 25 fps
- Provides horizontal viewing angles of up to 59°
- ATEX-Certified and housed in a 316L stainless steel casing
- 18x optical zoom
- Axis 5-year warranty
- Size: 165 x 176 x 480 mm
This advanced network camera is housed in an ATEX-Certified, robust 316L stainless steel casing – making it an ideal choice for heavy industry applications in locations with a high risk of fire or explosions. The unit captures detailed HD 1080p resolution video at full frame rate and is equipped with Wide Dynamic Range (WDR) technology for improved image quality in strongly backlit scenes. Other useful features include edge storage, powerful 18x optical zoom for in-depth investigation into regions of interest and support for the Axis Camera Application Platform (ACAP) - enabling the installation and use of powerful analytics applications.
Camera
The high-quality camera’s enclosure meets the ATEX-Certified EX II 2 GD standard, meaning it is able to contain internal explosions and prevent sparks from escaping the device. This makes the model suitable for use within high-risk environments such as oil refineries. The housing is also IP68-rated which allows it to withstand harsh weather conditions and provides protection against corrosion.
This robust unit provides horizontal views of up to 59° and is able to capture full HD 1080p resolution video at up to 25 frames per second (fps). In addition, the camera's powerful 18x optical zoom enables the user to obtain close-up views into specific areas of interest within the field of view.
Imaging
Images captured in high contrast scenes are improved with wide dynamic range technology. By ensuring details in both bright and dark areas are not lost, objects and individuals can be more easily identified. 12x digital zoom also allows further investigation into areas of interest and is handy for quick close-ups of the original image.
Video analytics
Configurable camera-based video motion detection and tampering alarms help to alert users of possible incidents via notifications such as email. Support for the Axis Camera Application Platform (ACAP) also enables the installation and use of high-performance analytics applications from Axis and third-party developers, such as virtual tripwire and other intrusion detection applications.
Video management
Data can be stored directly to the on-board MicroSD card - serving as a data backup if the network connection is interrupted. Powerful video management is also possible through integration with high-performance video management software applications such as Axis Camera Station and Milestone XProtect to provide a more comprehensive solution.
Installation
With a weather-resistant stainless steel 316L housing, this IP camera is built to endure the most demanding environments, including onshore and offshore applications such as marine or heavy industrial locations.
Please note: this robust unit must be installed and configured by an ATEX-Certified installer and does not come with a power supply (please select from the above dropdown menu if required).
Key features & benefits
- ATEX-Certified EX II 2 GD IP camera enclosed in a stainless steel 316L housing
- Delivers full HD 1080p resolution video at up to 25 frames per second
- Varifocal lens provides horizontal views of up to 59°
- 18x optical zoom and 12x digital zoom for in-depth investigation of areas of interest
- IP68-rated casing for durable use in external locations
- WDR technology retains image details in high-contrast scenes
- Camera-based video motion detection and tampering alarms are configurable to help alert users of possible incidents in real-time
- ACAP support for the installation of high-performance analytics applications
- Edge storage provides a backup of data in the event of network failure
Typical applications
This high-spec ATEX-Certified IP camera provides reliable surveillance in high-risk environments that are exposed to the most demanding conditions. Typical applications include petrochemical plants, oil refineries and gas pipelines.
Accessories
Included:
- User manual
- Installation guide
- Windows decoder 1-user licence
- Axis Surveillance microSDXC Card 64GB
- Sunshield
Optional (select from above dropdown menu):
- Power supply
- Mounting accessories
Key technical features of the Axis XF40-Q1765
Camera |
|
| ATEX certification: | ATEX: II 2 G Ex db IIC T4 Gb -60°C ≤ Ta ≤ +70°C Gb, II 2 D Ex tb IIC T135°C Db IP66/67, Certificate: ITS16ATEX101021X |
| Environment: | outdoor (IP68-rated) |
| Type: | explosion-protected network camera |
| Sensor: | 1/2.9” progressive scan RGB CMOS |
| Lens: | 4.7-84.6mm, F1.6-2.8, horizontal field of view: 59°-4°, autofocus |
| PTZ: | 18x optical zoom, 12x digital zoom, total 216x zoom, 64 preset positions |
| Audio: | none |
| Power: | 24V AC, max: 28W |
| Memory: | 256MB RAM, 128MB Flash |
Imaging |
|
| Resolution: | (1920 x 1080) to (160 x 90) |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, and Main profiles, Motion JPEG |
| Frame rate: | 25 fps |
| Video streaming: | multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/CBR H.264 |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.5 lux, b/w: 0.04 lux |
| IR illumination: | none |
| Video overlay: | text and image |
| Image settings: | compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, WDR – dynamic contrast, fine tuning of behaviour at low light, rotation, text and image overlay, day/night shift level |
Analytics |
|
| Application Programming Interface: | Axis Video Motion Detection 4, active tampering alarm, open API for software integration, including VAPIX and AXIS Camera Application Platform, Axis Guardian with One-Click Connection, ONVIF support: profiles S/G |
| Event triggers: | analytics, edge storage events |
| Event action: | day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, file upload via FTP, SFTP, HTTP, HTTPS, network share and email, notification via email, HTTP, HTTPS and TCP |
| Privacy masking: | none |
Video Management |
On-camera recording: | support for microSD/microSDHC/microSDXC card, support for SD card encryption, support for recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Companion, Axis Camera Station, Milestone XProtect |
| Cloud: | Morphean |
General |
|
| Network connections: | three M20 conduit entries |
| Alarm I/O connections: | none |
| Dimensions: | 165 x 176 x 480 mm |
| Weight: | 14kg |
| Casing: | IP66-, IP67-, and IP68-rated, electropolished SAE 316L stainless steel casing for maximum corrosion protection |
| Operating temperatures: | -40°C to 70°C |
| Mounting methods: | wall or pole |
| Installation aids: | pixel counter |
| Warranty: | 5 year |
| Power consumption: | max. 28W |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security: | password protection, IP address filtering, HTTPS encryption, digest authentication, User access log, Centralized Certificate Management |
| Approvals: | EMC: EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 22 Class A, safety: EN/UL/CSA 60065, environment: IEC/EN 60529 IP66, IP67, IP68, IEC/EN 62262 IK10 body, IK08 glass, explosion: IEC/EN/SANS/ABNT NBR 60079-0, IEC/EN/SANS/ABNT NBR/GOST 60079-1, IEC/EN/SANS/ABNT NBR/GOST 60079-31, GOST 31610.0, GB3836.1, GB3836.2, CAN/CSA-C22.2 No. 60079-0, CAN/CSA-C22.2 No. 60079-1, CSA-C22.2 No. 60065-03, CAN/CSA C22.2 No. 25, CAN/CSA C22.2 No. 30-M, UL 1203, network: NIST SP500-267 |
