| 01203-002

Axis T8342 wireless door / window sensor for use with Z-Wave Plus devices

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • Use with Axis M5065 & Z-Wave Plus devices
  • Trigger events if door or window is opened
  • Wireless I/O connectivity
  • Axis 3-year warranty
Hurry! Only left

This product is discontinued, for alternative models please see System Hardware

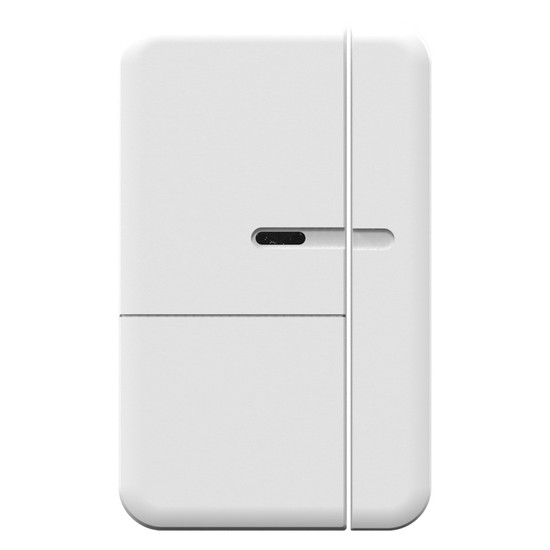

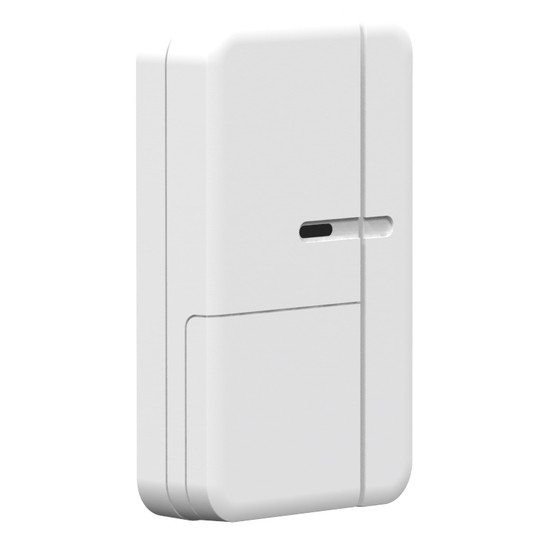

Overview of the Axis T8342 wireless door / window sensor


  • Detects the opening of a door/window and triggers events
  • Compatible with Z-Wave Plus devices
  • Completely wireless
  • Easily mountable
  • Axis 3-year warranty
  • Dimensions: 31 mm x 15 mm x 70 mm


Part of the Axis T934 wireless I/O Series, the T8342 can be installed across the opening of a door or window and will trigger an event to alert users if the door or window has been opened. The wireless unit is designed for use alongside the Axis M5065 IP camera, or when connected to Z-Wave Plus controllers this device provides a secure solution for monitoring physical access into premises.

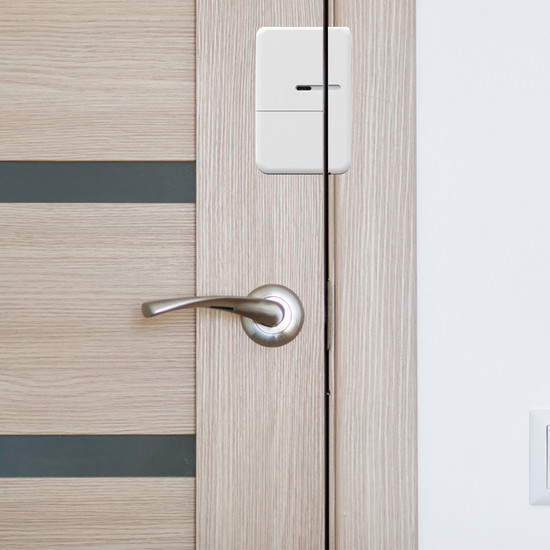

This door / window sensor can be easily mounted onto a door, window or cabinet using the included mount and wireless I/O connectivity provides flexible deployment options as no cabling is required. The unit can then communicate wirelessly with the Axis M5065, automatically alerting the network camera to change its preset position if a door or window is opened. In addition, compatibility with other Z-Wave enabled devices allows different types of sensors to be integrated into a single system to help enhance security operations.



  • Installation guide
  • Mounting kit
  • 2 x CR2450 3.0 V Lithium battery
Back To Top

Key technical features of the Axis T8342

Door / Window Sensor
Supported products: Axis M5000-G, M5075-G and Z-Wave Plus control devices
Distance: transmitting range up to 100m (328 ft)
Frequency: 868.42 MHz (EU)
Power: 2 x CR2450 3.0 V Lithium battery (battery life: 1 year)
Operating conditions: -40°C to 55°C
Approvals: EN 55032 Class A, EN 50130–4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, UL 2043, EN 50581

sensor: 31 x 15 x 70 mm (1.22 x 0.59 x 2.76 in)

magnet: 11 x 15 x 70 mm (0.43 x 0.59 x 2.76 in)

Weight: 38g
Supported protocols: Z-wave Plus
Warranty: 3 years
