| 01619-003

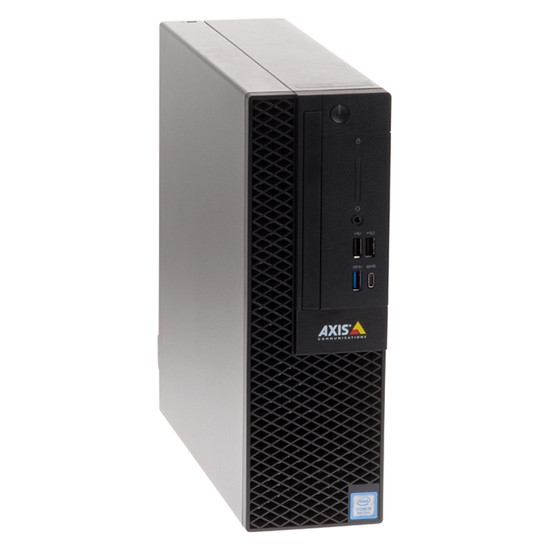

Axis Camera Station S9002 Mk II desktop terminal for use with Axis S11 Recorders and S20 Appliances

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Ideal for larger installations, this Axis desktop terminal is capable of supporting four simultaneous 4K streams and creates a high-performance workstation solution when used alongside an Axis S11 recorder or S20 appliance.

  • Designed for use with Axis S11 or S20
  • Support for four simultaneous 4K streams
  • Pre-installed with Axis Camera Station 5
  • Easy-to-install desktop terminal
Hurry! Only left

This product is discontinued, an alternative model is the Axis Camera Station S9302

Overview of Axis Camera Station S9002 Mk II desktop terminal

Offering high-definition CCTV monitoring with support for up to four simultaneous 4K video stream, this desktop terminal allows users to create a full surveillance workstation when combined with any of the Axis S11 recorders or S20 appliances. The terminal is pre-loaded with all necessary software including Axis Camera Station 5 (ACS 5) and a range of pre-configured settings to minimise installation time. Capable of supporting four monitors for an optimal system overview, this high-performance unit is a reliable choice for any medium to large-sized business.

This versatile unit features a powerful CPU for fast processing of data and an operating system stored on a Solid State Drive (SSD) - ensuring quicker start-up and safeguarding in the event of failure. The system is able to support four monitors in live view; each of which can display either a single 4K video stream at full frame rate, 4 x HD 1080p split view at 20 frames per second or 9 x 720p at 15 fps (requires the use of a 4K resolution display monitor). In addition, the units integrated USB ports allow accessories such as the mouse and universal keyboard (included) to be connected for a straightforward system navigation.

The included ACS 5 software offers an intuitive user interface and provides all the necessary features for a reliable CCTV surveillance system. It includes site map support for a full system overview and the responsive pan-tilt-zoom (PTZ) controls allow users to explore the system's camera channels. Camera-based video motion detection and tampering alarms are also configurable and can be managed easily to ensure high levels of dynamic scene awareness at all times. The quick investigation and retrieval of data is made easier via "Smart Search" video search functionality - ideal for the safe export of evidence. Additionally, data can be exported manually or at scheduled times to provide the user with full control of data management.

This desktop terminal is designed to be used alongside either Axis Camera Station S11 Recorders or Axis Camera Station S20 Appliances.

Key features and benefits

  • Compact terminal provides a standalone surveillance workstation when connected to an Axis S11 rack server or S20 appliance
  • Simple set up with pre-configured system settings helps to minimise installation time
  • Supports all camera resolutions up to 4K (8.3 megapixel) in both live view and playback modes
  • Up to four monitors can be connected to view live footage, and playback of video can be monitored via a single screen
  • Axis Camera Station 5 software is pre-installed to provide advanced video management
  • Site map support offers a full overview of all IP cameras in the system
  • Smart Search features allows the user to quickly retrieve recordings and video files
  • All hardware included has a 5-year warranty

Typical applications

The Axis Camera Station S9002 MK II Desktop Terminal is designed for use alongside Axis S11 recorder or an Axis S20 appliance to provide a high-performance workstation solution. Ideal for larger installations requiring high quality surveillance, typical applications include hotels, university campuses and retail parks.

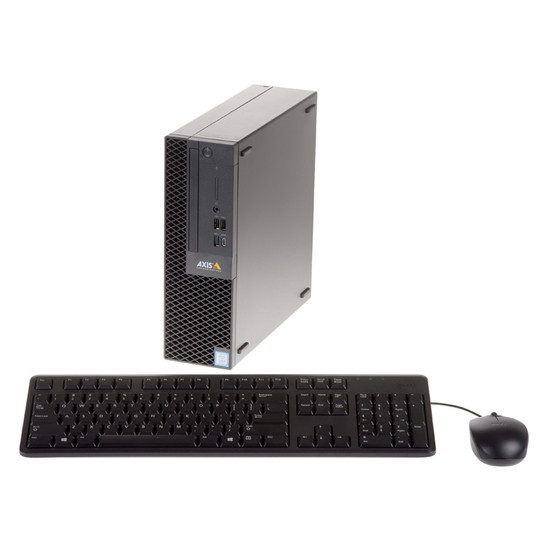

  • Installation guide
  • Keyboard (international/US)
  • Mouse
  • 4 x mini display port to display port adapters


  • Axis T8310 video surveillance control board
Back To Top

Key technical features for Axis Camera Station S9002 Mk II Desktop Terminal

Processor: Intel Core i5-8400
Form factor desktop terminal
O/S and video management software: Axis Camera Station 5 client
Memory: 8GB
Storage: 128 GB SATA Solid State Drive
Maximum power consumption: 300W

5x USB 3.1, 1x USB 3.1 Type-C 4x USB 2.0, 2x displayPort; 1.2 (not preferred), 4x mini DisplayPort™, 1x Ethernet (RJ45), 1x universal audio jack, 1x audio line out, 1x serial port, PS2 mouse and keyboard ports

Operating system: Microsoft Windows 10 Enterprise, operating system recovery: yes, operating system drive: 128 GB SSD
Environment: 0°C - 45°C

included: installation guide, keyboard, mouse, 4 x mini display port to display port adapters

optional: Axis joysticks and control boards

Video streaming: live view: 4 monitors x 4K full screen at 25 fps, 4 monitors x 4 split x 1080p at 20 fps, 4 monitors x 9 split x 720p at 15 fps, playback: limited to 1 monitor but supports the same split scenarios as for live view
Compatibility: supports all Axis camera resolutions up to 8.3 megapixels (4K)
Weight: 5.0kg
Approvals: IEC/EN/UL 60950-1 FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KN35, EN 55032, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN 50564, EN 62623, EAC, BSMI, NOM
Hardware warranty: 5 years
Dimensions: 182 (L) x 178 (W) x 33 (H) mm
