Axis Communications | CL-0763-001

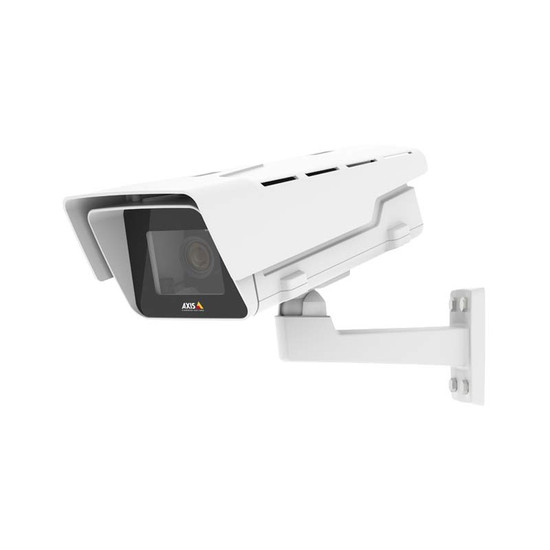

Axis P1367-E outdoor CS-mount IP camera with 5MP resolution, Lightfinder, Forensic WDR, two-way audio, edge storage and PoE
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This outdoor-ready camera features advanced imaging technologies for capturing clear footage in challenging lighting conditions. Ideal for deployment in outdoor areas with effective wet weather and vandal resistance.
- 5MP video resolution
- Varifocal lens: 36° - 83° horizontal viewing angle
- Lightfinder for full-colour video in low light
- Forensic WDR tackles contrasting lighting
- Built-in microphone
- Axis OS supported until 31-12-2027
Overview of the Axis P1367-E outdoor IP camera (Stock clearance)
- Condition: Box opened for testing
- Axis OS supported until 31-12-2027
- Free delivery to mainland UK & EU
- No returns or refunds
- Serial number: B8A44F0357B7
- Quantity: 1
This outdoor-ready IP camera from Axis’ versatile P13 series delivers 5MP resolution video at full frame rate, 24/7. Its IK10-rated housing features a flexible platform for easy access to connectors and cabling, plus support for larger zoom lenses. Advanced imaging technologies ensure clear video in difficult lighting, and installation is simple via Power-over-Ethernet (PoE). Forensic WDR and Lightfinder enhance video in high-contrast and low-light conditions, while Axis Corridor Format optimises narrow scenes. A built-in microphone enables audio monitoring, with two-way communication supported via external I/O ports.
The CS-mount camera supports CS- and i-CS lenses and comes with a varifocal lens for wide horizontal viewing angles. Axis Video Motion Detection helps provide reliable alerts, enabling proactive monitoring of activity in the scene. Axis Zipstream reduces bandwidth and storage use by up to 50%, preserving important details while minimising unnecessary data.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Axis Camera Station Software
- Axis Camera Station NVRs
- Milestone XProtect video management software
- Morphean Cloud CCTV
Included Accessories
- Installation guide
- Windows® decoder 1-user license
- Wall mount bracket
- Sunshield
- Connector kit
- IK10 tool
Key technical features of the Axis P1367-E
Camera |
|
| Environment: | outdoor (IP66, IP67, IK10 and NEMA 4X-rated) |
| Type: | fixed |
| Sensor: | 1/2.9” progressive scan RGB CMOS |
| Lens: | IR corrected, CS-mount lens, P-iris, varifocal 2.8 – 8.5 mm, F1.2, horizontal angle of view: 72° - 36° (with IK10-rated protection in the front window), 83° - 36° (without IK10-rated protection in the front window) |
| Audio: | two-way, full duplex, external microphone input or line input, line output |
| PTZ: | digital PTZ |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 9.2 W, typical 5.3 W |
| Memory: | 1 GB RAM, 512 MB Flash |
Video |
|
| Resolution: | (3072 x 1728) to (160 x 90) |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG |
| Frame-rate: | 25 fps |
| Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG, Axis' Zipstream technology in H.264, controllable frame rate and bandwidth |
| Day/night: | automatically removable infrared cut-filter |
| Minimum illumination: | colour: 0.15 lux, B/W: 0.03 lux, F1.2 |
| Video overlay: | text and image |
| Imaging: | compression, colour, brightness, sharpness, contrast, white balance, day/night threshold, exposure mode, exposure zones, Forensic WDR (wide dynamic range), rotation 0°, 90°, 180°, 270°, corridor format |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | Axis video motion detection 4, active tampering alarm, audio detection, support for Axis Camera Application Platform enabling installation of third-party applications |
| Alarm action: | file upload: FTP, SFTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS and TCP, external output activation, video recording to edge storage, play audio clip, Day/Night switching, status LED activation, WDR mode, send SNMP trap, PTZ preset |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | support for microSD/microSDHC/microSDXC card |
| Direct-to-NAS storage: | yes |
| Recording software supported: | Axis Camera Station |
Connections |
|
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 9.2 W, typical 5.3 W |
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| SD card slot: | MicroSD card |
Other |
|
| Dimensions: | 382 x 155 x 120 mm |
| Weight: | 2.2 kg |
| Casing: | IP66, IP67, IK10 and NEMA 4X-rated polymer enclosure |
| Mounting methods: | wall mount bracket included |
| Operating temperatures: | -40°C to 55°C |
| Power consumption: | max 9.2 W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management |
| ONVIF compliant: | yes, profile S |
