Axis M5065 indoor mini PTZ IP camera with HD 1080p, wireless I/O, built-in microphone, Zipstream, edge storage and PoE

This product is discontinued, an alternative model is the Axis M5075-G

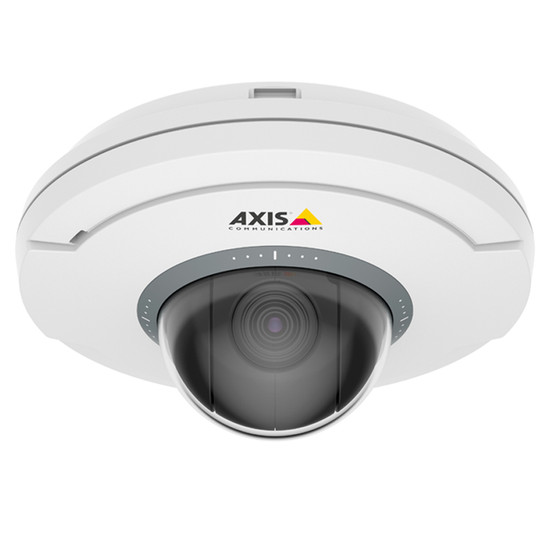

Overview of the Axis M5065

This palm-sized PTZ network camera by Axis provides unobtrusive, HD monitoring of indoor locations when ceiling mounted. It can communicate wirelessly with connected Z-Wave Plus devices to provide a compact security solution (with reduced cabling) that is suitable for smaller enterprises such as retail stores or hospitality venues. In addition, this unit can be installed easily using Power-over-Ethernet (PoE) and areas of interest can be examined in detail using the camera's pan/tilt functionality and 5x optical zoom.

The camera’s wireless I/O connectivity enables on/off commands to be used with up to six, Z-Wave Plus connected devices in a system setup. Helping to enhance security surveillance operations, when paired with the Axis T8342 door / window senor, this camera can automatically change its preset position if a door or window is opened – capturing potentially vital activity occurring.

The compact camera delivers high-quality HD 1080p resolution at full frame rate and pan/tilt functionality enables users to navigate across a wide area of the scene. 5x optical zooming enables real-time investigation into specific regions of interest, and quick close-ups of the original image can be examined using the unit’s 10x digital zoom.

Users can listen to activity occurring close to the camera via the built-in microphone in live view and these audio recordings can also be listened to in the playback. Audio triggered alerts can be used in conjunction with configurable video motion detection alarms to help inform users of activity via email notification. Additionally, these alarms can also be set to trigger MicroSD card recording (card not included) - ensuring all motion is captured.

Axis Companion Application is supported and provides a simple, free video management solution for up to 16 IP cameras. Available as a PC client or mobile application for Android and iOS devices, this handy software provides remote access to live views as well as playback of recordings. Support for PoE supplies the camera with both power and network connectivity via a single cable – simplifying installation. In addition, support for Axis' Zipstream technology optimises the stream, reducing the bandwidth by separating areas of interest to maintain a higher quality than areas of little interest.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

• Capable of delivering HD 1080p resolution at up to 25 frames per second (fps) for smooth CCTV surveillance
• Support for wireless I/O connectivity for communication with Z-Wave Plus devices
• 180° pan and 90° tilt allow users to easily navigate across wide indoor scenes
• 5x optical zoom enables real-time investigation into specific regions of interest
• 10x digital zoom is handy for quick close-ups of the original images
• Improved performance in complex lighting with wide dynamic range (WDR) technology
• Integrated microphone enables users to listen in and to record audio in the camera's surroundings
• Enhanced security monitoring with the use of built-in analytics such as scream detection and object removal
• Video motion detection alarms can be configured to alert operators of possible incidents in real-time
• Free video management for up to 16 cameras using the Axis Companion application
• Support for PoE reduces cabling and offers a cost-effective installation solution
• Axis Zipstream technology lowers bandwidth and storage by retaining important image details and removing unnecessary data
• Recordings can be stored locally to the on-board MicroSD card (not included) and used as a backup if the network fails

Compatible recording platforms

• Axis Camera Station
• Milestone XProtect
• Axis Companion application (free)
• Morphean Cloud CCTV
• CamStreamer Cloud

Typical applications

The Axis M5065 mini-PTZ network camera is an ideal choice for small business applications that require responsive CCTV surveillance of indoor locations in HD resolution. Users are also able to integrate additional wireless devices, such as PIR sensors, to help enhance security monitoring. Typical applications include hotel lobbies, convenience stores and small offices.

Accessories

Included:

• Installation guide
• Windows decoder 1-user license
• Axis M50 mounting kit

Optional:

• MicroSD card
• PoE midspan
