| 01773-001

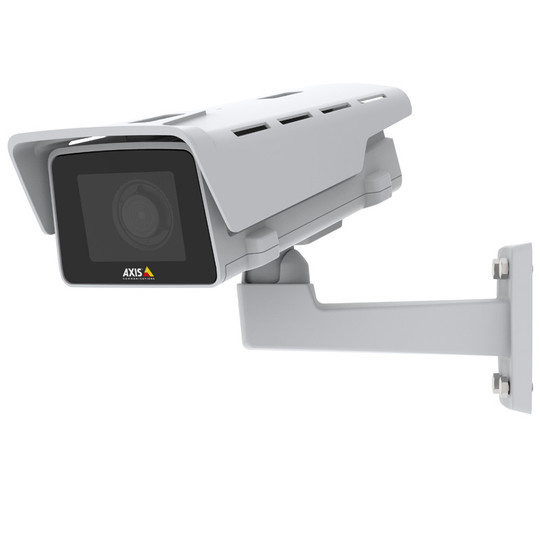

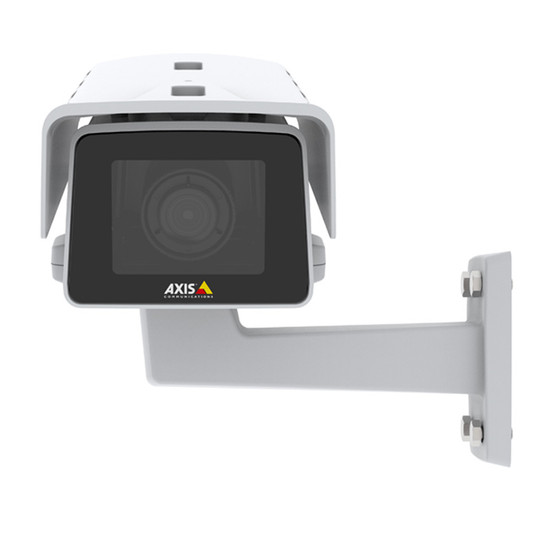

Axis M1137-E outdoor IP camera with 5MP resolution, varifocal CS mount lens, Lightfinder, Forensic WDR and edge storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Housed in a robust IP66 and IK10-rated casing, this attractively priced fixed bullet is an ideal choice for monitoring large, exposed outdoor areas. Advanced imaging technologies and on-board analytics enable a reliable monitoring solution.

  • Lightfinder & Forensic WDR improve imaging
  • ACAP support for 3rd party analytics
  • Exchangeable CS-mount lens
  • Varifocal lens: 112°-24° viewing angle
  • 5MP resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis M1137-E Mk II

Overview of the Axis M1137-E

  • Captures detailed 5MP resolution video at up to 25fps
  • Varifocal lens with wide 112° horizontal viewing angle
  • Forensic WDR and Lightfinder technologies
  • Exchangeable CS mount lens
  • Axis 5-year warranty
  • Size: 240 x 143 x 372 mm


Part of the attractively priced M11 range from Axis, this outdoor-ready CS mount IP camera delivers clear 5MP resolution video at up to 25 frames per second (fps). Its robust IP66 and IK10-rated housing offers protection in exposed areas and with a varifocal lens offering horizontal viewing angles of up to 112&deg, this camera is ideal for wide outdoor scenes. Additional features include Lightfinder, Forensic Wide Dynamic Range (WDR) technology and on-board MicroSD storage (card not included). Remote access is also possible via the free Axis Companion mobile application.


The high-quality camera features a varifocal lens which provides horizontal viewing angles up to 112° and allows optimum scene coverage to be set during installation. It also includes a CS-mount lens – enabling users to easily exchange lenses to best suit their monitoring needs (alternative lenses not included). With true day/night recording, this unit is able to capture reliable security footage 24 hours a day and video can be further enhanced with audio recording through the connection of an external microphone (not included).


Forensic WDR technology optimises video by lowering noise levels and increasing the image signal to ensure details are visible in both dark and bright areas. In addition, the camera has the ability to deliver full colour video in extreme low-light conditions using Axis’ Lightfinder technology. Digital pan/tilt/zoom (PTZ) controls also allow the user to examine specific areas of the original image in greater detail – particularly useful when trying to identify persons or objects.

Video analytics

Various video motion detection methods can be configured to enhance dynamic scene awareness and deliver reliable security monitoring. Additional analytics applications from Axis or third-party developers can also be installed via the Axis Camera Application Platform (ACAP), such as virtual tripwire, loitering alarm and many other intrusion detection applications.

Video management

Installation of the Axis Companion mobile application provides simple video management for up to 16 IP cameras. This free software enables users to record and playback video footage from the camera’s MicroSD card (not included) for an affordable and easy-to-use CCTV monitoring solution. For further functionality, this camera can also be easily integrated into other high-performance video management systems such as Axis Camera Station and Milestone XProtect. The unit also supports storage to network attached devices (NAS) for recording to any retention period.


With support for PoE, this camera is able to receive power and network connectivity over one cable for simple, cost-effective installation. This high-quality unit is also equipped with an Axis T94Q01A wall mount – offering flexible mounting options to users.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

  • Delivers smooth 5MP resolution video at up to 25fps
  • Varifocal lens with 112&deg wide horizontal viewing angle allows optimum scene coverage to be set during installation
  • Exchangeable CS mount lens enables users to easily exchange lenses to meet monitoring needs (optional lenses not included)
  • IP66 and IK10-rated casing offers protection in exposed outdoor areas
  • Forensic WDR technology retains the level of detail across images with high contrast lighting
  • Captures full colour images, even in near darkness using Axis’ Lightfinder technology
  • Digital PTZ controls allow users to examine specific areas of the original image in greater detail
  • Intelligent on-board analytics and support for ACAP for reliable intrusion detection
  • Integrated MicroSD card slot (card not included) provides edge storage – offering a handy backup of data in the event of network failure
  • Remote access and basic video management are made possible through the free Axis Companion mobile application
  • PoE supplies power and network connection to the camera through one cable - simplifying installation

Typical applications

Housed in a robust IP66 and IK10-rated casing, this high-quality IP camera is ideal for monitoring wide, exposed outdoor scenes. Typical uses include train station terminals, shopping centres and university campuses.



  • Installation Guide
  • User manual
  • Windows decoder 1-user license
  • Axis T94Q01A wall mount


  • MicroSD card
  • PoE midspan
Back To Top

Key technical features of the Axis M1137-E


Environment: outdoor (IP66 and IK10-rated)
Type: fixed
Sensor: 1/2.7” progressive scan RGB CMOS
Lens: Varifocal, IR corrected, CS-mount, DC-iris, 2.8–13 mm, horizontal field of view: 112° - 24°
Audio: External microphone input or line input
Power: Power-over-Ethernet IEEE 802.3af/802.3at Type 1 Class 3, typical: 4.5W, max: 7.2W
Memory: 1024MB RAM, 512MB Flash


Resolution: 5 MP: (2592x1944) to (160x120), 4 MP: (2688x1512) to (160x90)
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG
Frame-rate: 25 fps
Bandwidth control: Multiple, individually configurable streams in H.264, H.265 and Motion JPEG, Axis Zipstream technology in H.264 and H.265, controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265
Day/night: automatically removable infrared-cut filter
Minimum illumination: colour: 0.17 lux, b/w: 0.03 lux
Digital zoom/PTZ yes
Video overlay: text and image
Imaging: Axis Forensic WDR: up to 120 dB depending on scene, manual shutter time, compression, colour, brightness, sharpness, contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behaviour at low light, aspect ratio correction, text and image overlay, privacy mask, mirroring of images

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
External alarm inputs and outputs none
Alarm detection: included: Axis Video Motion Detection, tampering alarm. Supported: support for Axis Camera Application Platform enabling installation of third-party applications
Alarm action: File upload via FTP, HTTP HTTPS, SFTP, network share and email, notification via email, HTTP, HTTPS, TCP, video recording to edge storage, pre- and post-alarm video buffering, PTZ preset, guard tour, send video clip, send SNMP trap, day/night vision mode, WDR mode, status LED indicator, output port
Pre-/post-alarm buffer: yes
On-camera recording: support for MicroSD/microSDHC/microSDXC and encryption, support for recording to network-attached storage (NAS)
Recording software supported: Axis Companion Software, Axis Camera Station


Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Network: RJ45 10BASE-T/100BASE-TX PoE, max. 7.2W
Alarm I/O none


Dimensions: 240 x 143 x 372 mm
Weight: 1.80kg
Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant polymer enclosure, colour: White NCS S 1002-B
Warranty: 5 year
Mounting methods: ceiling, wall
Operating temperatures: -25°C to 50°C
Power consumption: max. 7.2W
Dynamic DNS: yes
Protocols supported: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
QoS: yes
Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, user access log, brute force delay protection, signed firmware, secure boot
ONVIF compliant: yes, profiles G/S/T
